NSN 5120-00-188-8437
Part Details | HAND SHOVEL
5120-00-188-8437 A tool with a broad, deep scoop or blade and a handle used primarily for digging or handling loose and bulky materials such as earth, sand, gravel, snow and the like. Excludes FIRE SHOVEL HAND and INTRENCHING TOOL, HAND. See also SPADE AND SPOON (as modified).
Alternate Parts: 1200900, GGGS326, GGG-S-326, GGGS326 TY6ST1SZ2, GGG-S-326 TY6ST1SZ2, SP2DE, SP2D-E, 3W434, 5120-00-188-8437, 00-188-8437, 5120001888437, 001888437
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-188-8437 | 05411 ( SHOVEL, HAND ) |
REFERENCE DRAWINGS & PICTURES

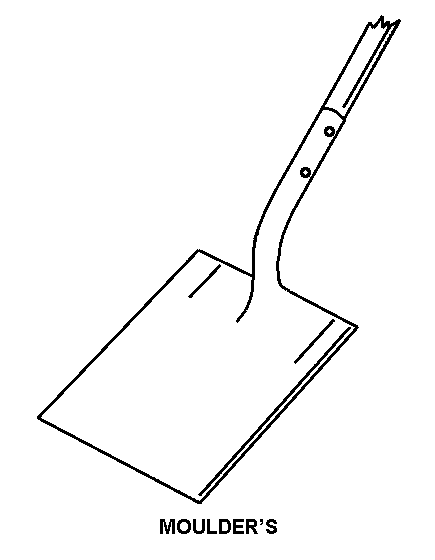

MOULDER'S
Cross Reference | NSN 5120-00-188-8437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1200900 | 94536 | AMES TRUE TEMPER INC |
| GGG-S-326 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-S-326 TY6ST1SZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| SP2D-E | 76732 | NUPLA CORPORATION |
| 3W434 | 25795 | W.W. GRAINGER, INC.DBA GRAINGER |
Technical Data | NSN 5120-00-188-8437
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | D-STYLE |
| DIGGING IMPLEMENT STYLE | MOULDER'S |
| HANDLE LENGTH | 27.000 INCHES |
| SIZE DESIGNATOR | 2 |
| BLADE LENGTH | 11.375 INCHES MINIMUM AND 12.500 INCHES MAXIMUM |
| BLADE CONSTRUCTION TYPE | OPEN BACK |
| BLADE WIDTH | 9.500 INCHES MINIMUM AND 10.250 INCHES MAXIMUM |
