NSN 5120-00-188-8440
Part Details | HAND SHOVEL
5120-00-188-8440 A tool with a broad, deep scoop or blade and a handle used primarily for digging or handling loose and bulky materials such as earth, sand, gravel, snow and the like. Excludes FIRE SHOVEL HAND and INTRENCHING TOOL, HAND. See also SPADE AND SPOON (as modified).
Alternate Parts: GGGS326, GGG-S-326, 5120001888440, 5120-00-188-8440, GGGS326 TY8CLASZ2, GGG-S-326 TY8CLASZ2, 5120-00-188-8440, 00-188-8440, 5120001888440, 001888440
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-188-8440 | 05411 ( SHOVEL, HAND ) |

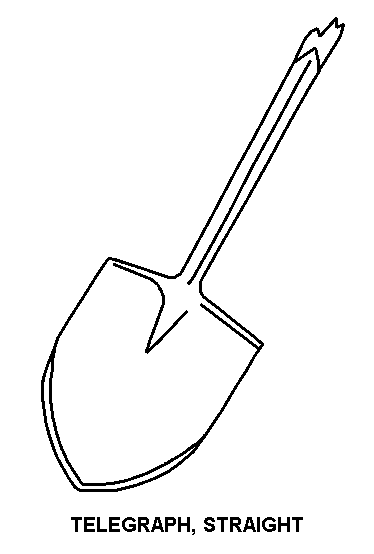

REFERENCE DRAWINGS & PICTURES
TELEGRAPH,STRAIGHT
Cross Reference | NSN 5120-00-188-8440
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-S-326 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-188-8440 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-S-326 TY8CLASZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-188-8440
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | LONG STYLE |
| DIGGING IMPLEMENT STYLE | TELEGRAPH,STRAIGHT |
| HANDLE LENGTH | 96.000 INCHES |
| SIZE DESIGNATOR | 2 |
| BLADE LENGTH | 11.375 INCHES MINIMUM AND 12.500 INCHES MAXIMUM |
| BLADE CONSTRUCTION TYPE | SMOOTH BACK |
| BLADE WIDTH | 9.625 INCHES MINIMUM AND 10.250 INCHES MAXIMUM |
