NSN 5120-00-188-8446
Part Details | EASTERN PATTERN SCOOP
5120-00-188-8446 A square pointed hand tool of open (hollow) back construction having a maximum blade width of 13-1/2 inches (342.9 mm). Refer to Reference Drawing Group BG before using item name.
Alternate Parts: 1443600, GGGS326, GGG-S-326, 5120001888446, 5120-00-188-8446, GGGS326 TY2, GGG-S-326 TY2, 5120-00-188-8446, 00-188-8446, 5120001888446, 001888446
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-188-8446 | 05408 ( SCOOP, EASTERN PATTERN ) |
REFERENCE DRAWINGS & PICTURES

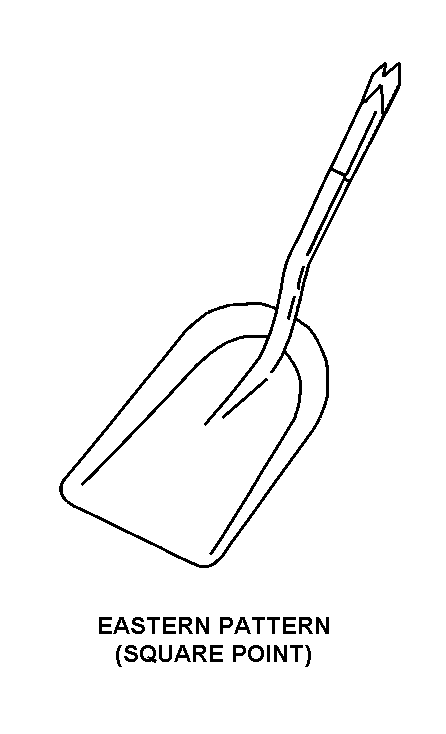

EASTERN PATTERN (SQUARE POINT)
Cross Reference | NSN 5120-00-188-8446
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1443600 | 94536 | AMES TRUE TEMPER INC |
| GGG-S-326 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-188-8446 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-S-326 TY2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-188-8446
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | D-STYLE |
| DIGGING IMPLEMENT STYLE | EASTERN PATTERN (SQUARE POINT) |
| SIZE DESIGNATOR | 4 |
| BLADE LENGTH | 16.250 INCHES MINIMUM AND 17.250 INCHES MAXIMUM |
| BLADE CONSTRUCTION TYPE | OPEN BACK |
| BLADE WIDTH | 12.500 INCHES MINIMUM AND 13.000 INCHES MAXIMUM |
