NSN 5120-00-194-2511
Part Details | WOOD CAULKING IRON
5120-00-194-2511 Refer to Reference Drawing Group A before using item name. See also CAULKING TOOL, HAND; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGI671, GGG-I-671, GGGI671 TY5CLA, GGG-I-671 TY5CLA, 865C, 86-5C, 5120-00-194-2511, 00-194-2511, 5120001942511, 001942511
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-194-2511 | 03931 ( CAULKING IRON, WOOD ) |
REFERENCE DRAWINGS & PICTURES

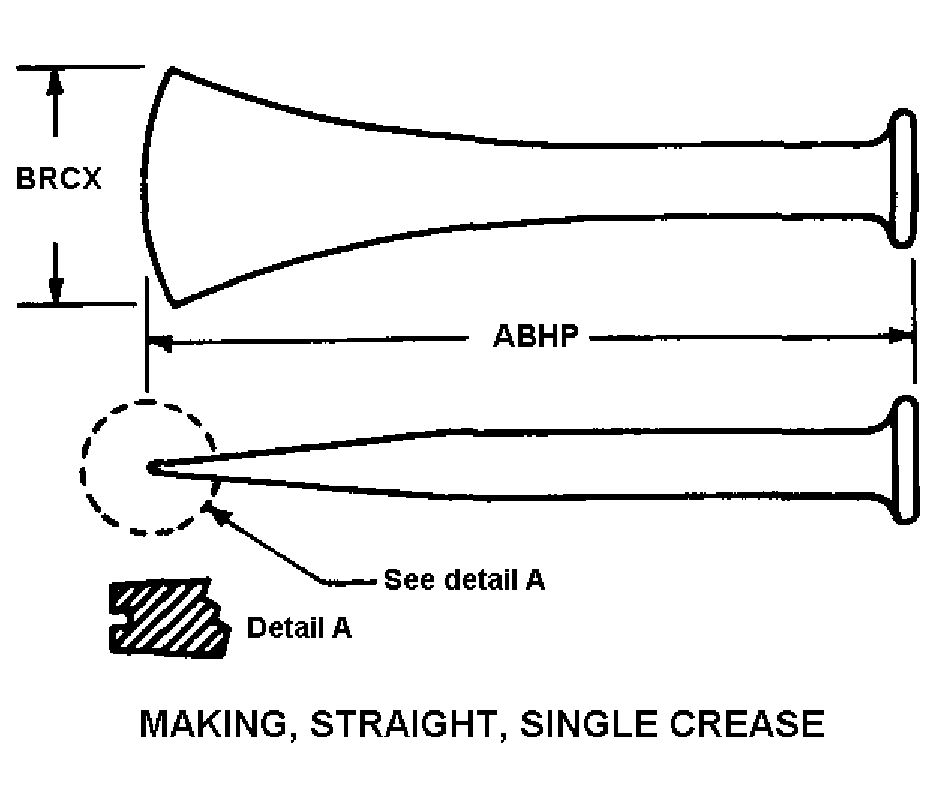

MAKING, STRAIGHT, SINGLE CREASE
Cross Reference | NSN 5120-00-194-2511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-I-671 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-I-671 TY5CLA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 86-5C | 58005 | STORTZ JOHN AND SON INCORPORATED |
Technical Data | NSN 5120-00-194-2511
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MAKING, STRAIGHT, SINGLE CREASE |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| WORKING END WIDTH | 2.500 INCHES NOMINAL |
