NSN 5120-00-203-4832
Part Details | BASIN WRENCH
5120-00-203-4832 A sliding tee handled wrench with jaw(s) designed to exert a turning force about an axis parallel with the leg of the handle. It is adaptable for close quarters and is used for basin nuts, ball cocks, and flush valves.
Alternate Parts: GGGW00651, GGG-W-00651, GGGW00651 TY7, GGG-W-00651 TY7, 5120002034832, 5120-00-203-4832, 1GM921, 5120-00-203-4832, 00-203-4832, 5120002034832, 002034832
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-203-4832 | 07554 ( WRENCH, BASIN ) |
REFERENCE DRAWINGS & PICTURES

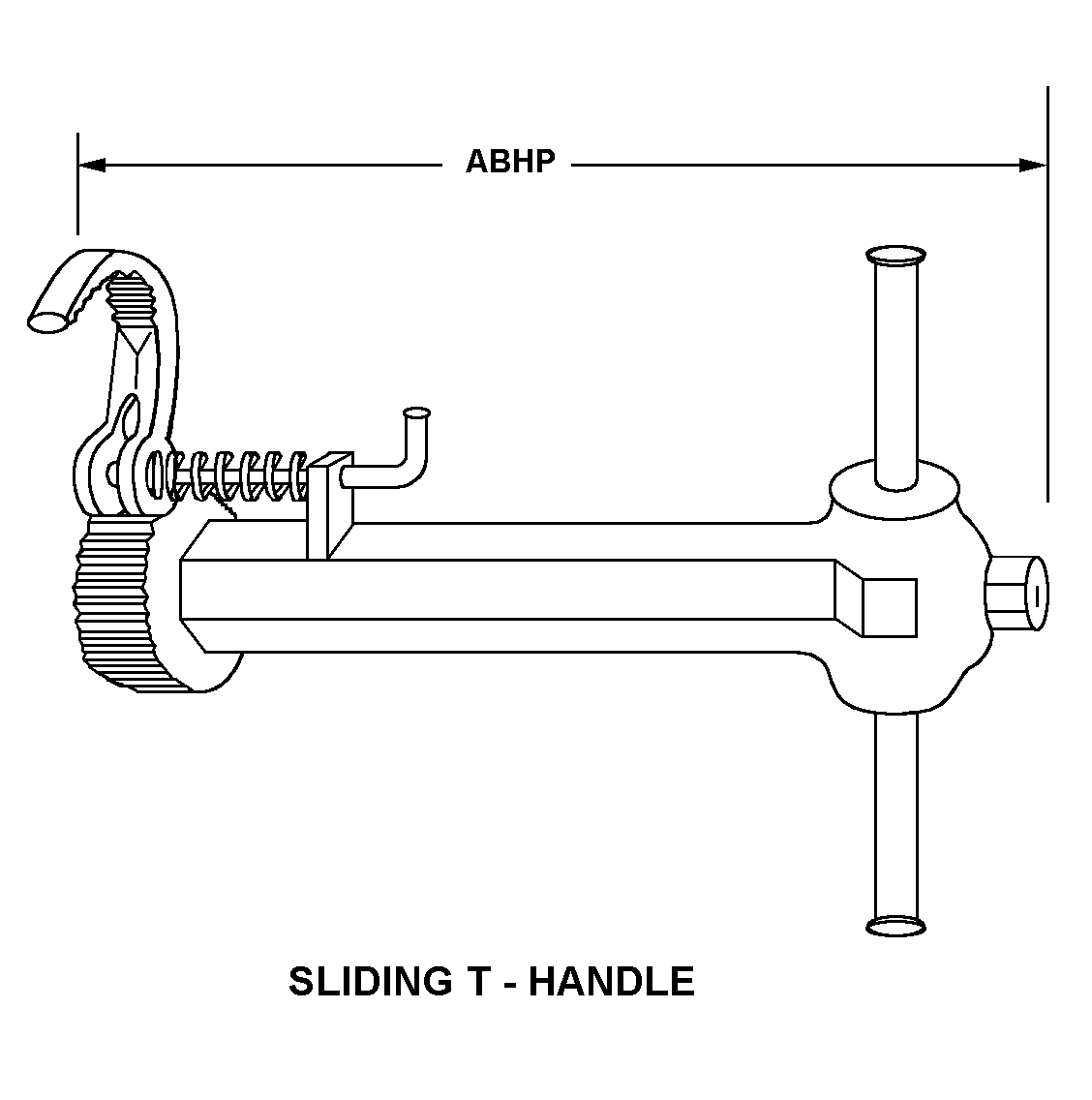

SLIDING T-HANDLE
Cross Reference | NSN 5120-00-203-4832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-00651 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-00651 TY7 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 5120-00-203-4832 | 7L527 | KAUFMAN COMPANY, INC. |
| 1GM921 | 31170 | SPARTAN CO THE |
Technical Data | NSN 5120-00-203-4832
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLIDING T-HANDLE |
| OVERALL LENGTH | 10.000 INCHES MINIMUM AND 18.000 INCHES MAXIMUM |
| SPECIAL FEATURES | SURFACE TREATMENT - ZINC OVERALL AND ENAMEL OR LAQUERED OR PHOSPHATE COATING; OIL TREATED |
| NONDEFINITIVE SPEC/STD DATA | 7 TYPE |
