NSN 5120-00-204-2654
Part Details | BOX WRENCH
5120-00-204-2654 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 2042654, 5120-00-204-2654, 00-204-2654, 5120002042654, 002042654
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-204-2654 | 03555 ( WRENCH, BOX ) |

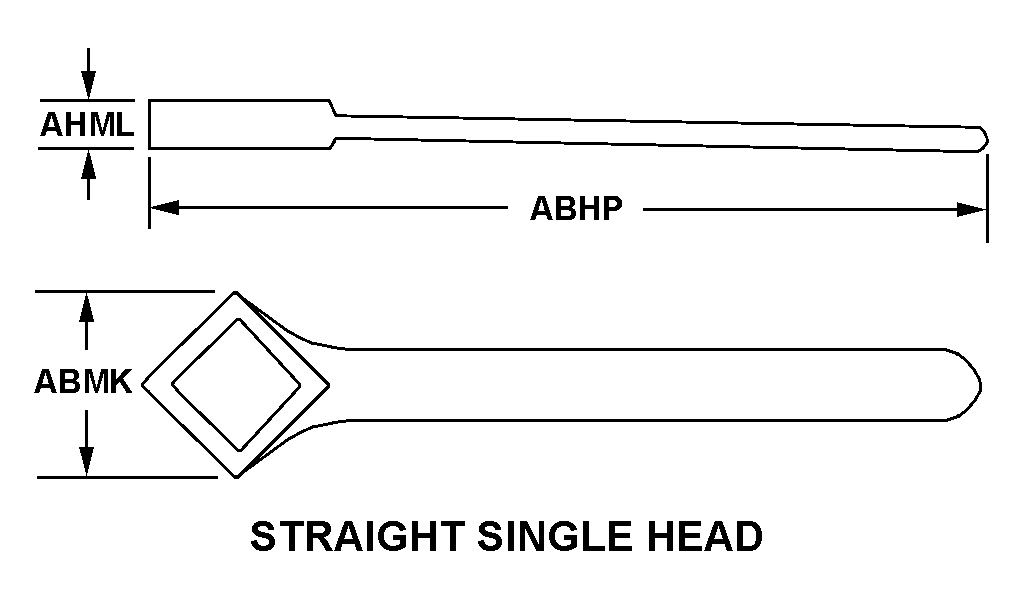

REFERENCE DRAWINGS & PICTURES
STRAIGHT SINGLE HEAD
Cross Reference | NSN 5120-00-204-2654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2042654 | 94648 | MARC METAL FABRICATIONS INC |
Technical Data | NSN 5120-00-204-2654
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SINGLE HEAD |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| HEAD THICKNESS | 0.625 INCHES NOMINAL |
| SPECIAL FEATURES | HARDNESS ROCKWELL C35-40 |
