NSN 5120-00-215-5761
Part Details | DRAIN PLUG WRENCH
5120-00-215-5761 A wrench specifically designed for removing and replacing drain plugs installed in engine bases, transmission housings, transfer cases, fuel tanks, shock absorbers, differential housings, pontoons, and the like. See also WRENCH, BUNG.
Alternate Parts: 354085 PC15, 5120-00-215-5761, 00-215-5761, 5120002155761, 002155761
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-215-5761 | 03412 ( WRENCH, DRAIN PLUG ) |
REFERENCE DRAWINGS & PICTURES

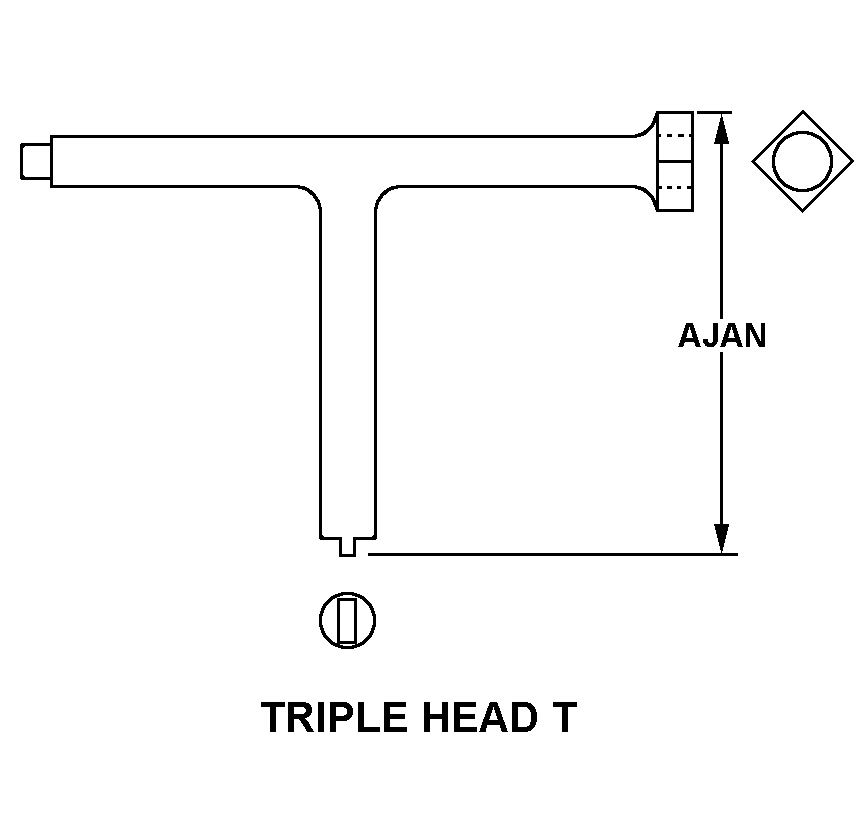

TRIPLE HEAD T
Cross Reference | NSN 5120-00-215-5761
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 354085 PC15 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5120-00-215-5761
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TRIPLE HEAD T |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| SHORT ARM LENGTH | 8.500 INCHES NOMINAL |
| FEATURES PROVIDED | NONMAGNETIC AND NONSPARKING |
