NSN 5120-00-218-5959
Part Details | SPANNER WRENCH
5120-00-218-5959 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 3N175PC201, 3N170PC201, AC52492, AC5249-2, AB2402, AB240-2, 5120-00-218-5959, 00-218-5959, 5120002185959, 002185959
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-218-5959 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

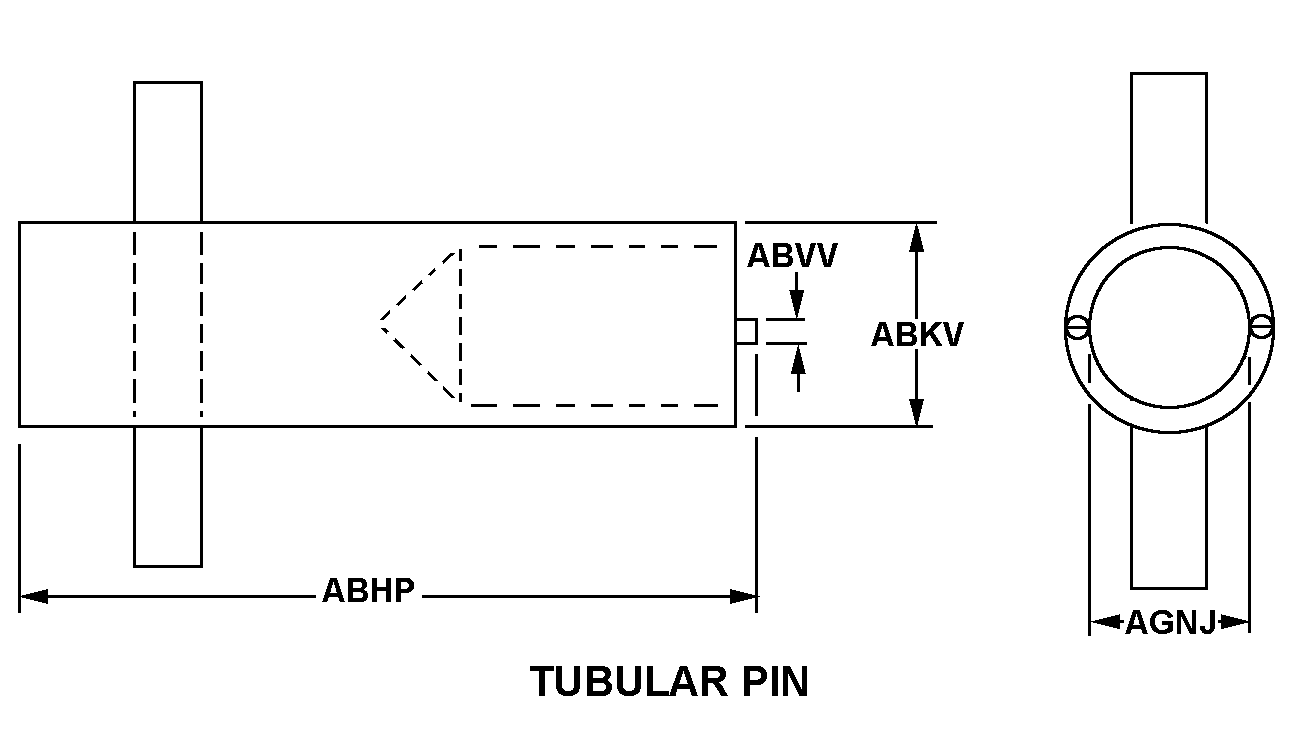

TUBULAR PIN
Cross Reference | NSN 5120-00-218-5959
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3N175PC201 | 54370 | ALFA LAVAL INC. |
| 3N170PC201 | 54370 | ALFA LAVAL INC. |
| AC5249-2 | 54370 | ALFA LAVAL INC. |
| AB240-2 | 54370 | ALFA LAVAL INC. |
Technical Data | NSN 5120-00-218-5959
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR PIN |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.188 INCHES NOMINAL |
| PIN DIAMETER | 0.125 INCHES NOMINAL |
| OPENING DIAMETER | 0.688 INCHES NOMINAL |
| SPECIAL FEATURES | 4-1/2 IN. LG T-HANDLE |
