NSN 5120-00-221-7984
Part Details | TORQUE WRENCH
5120-00-221-7984 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.
Alternate Parts: DF1000R01000, DF1000R0-1000, AA1274, A-A-1274, GGGW686, GGG-W-686, GGGW686 TY1CL1STA, GGG-W-686 TY1CL1STA, GGGW686 TY1CL2STA, GGG-W-686 TY1CL2STA, 5120-00-221-7984, 00-221-7984, 5120002217984, 002217984
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-221-7984 | 17611 ( WRENCH, TORQUE ) |
REFERENCE DRAWINGS & PICTURES

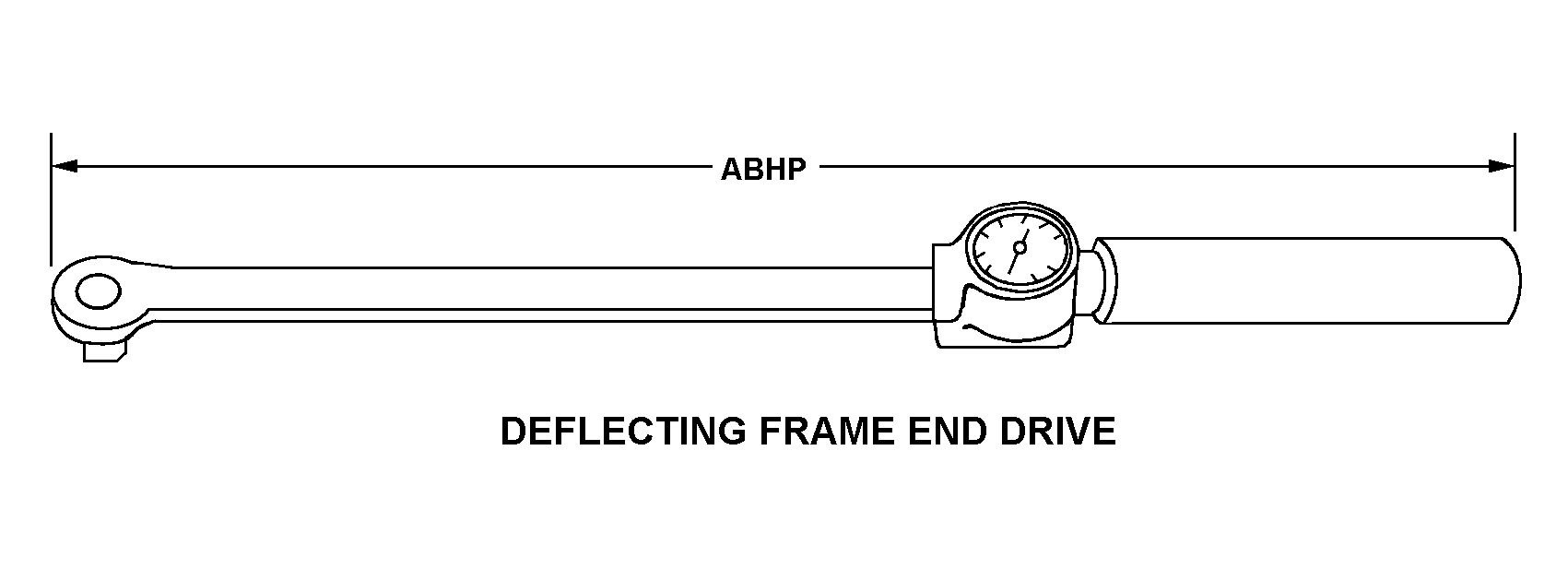

DEFLECTING FRAME END DRIVE
Cross Reference | NSN 5120-00-221-7984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DF1000R0-1000 | 03683 | APCO MOSSBERG CO |
| A-A-1274 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-686 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-686 TY1CL1STA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-W-686 TY1CL2STA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-221-7984
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DEFLECTING FRAME END DRIVE |
| TORQUE CAPACITY | 0.0 FOOT-POUNDS MINIMUM AND 1000.0 FOOT-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | DIAL |
| TORQUE SIGNAL METHOD | VISUAL |
| TORQUE SCALE GRADUATION | 50.00 FOOT-POUNDS |
