NSN 5120-00-222-2126
Part Details | HAND CAULKING TOOL
5120-00-222-2126 Refer to Reference Drawing Group A before using item name. See also CAULKING IRON, WOOD; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGC313, GGG-C-313, GGGC313 TY3CL2, GGG-C-313 TY3CL2, 5120-00-222-2126, 00-222-2126, 5120002222126, 002222126
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-222-2126 | 04454 ( CAULKING TOOL, HAND ) |
REFERENCE DRAWINGS & PICTURES

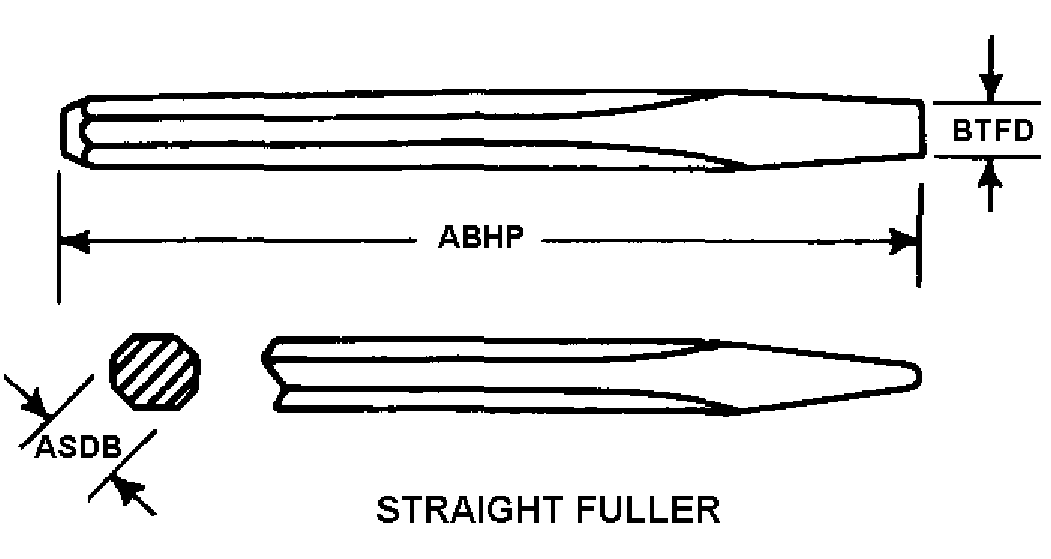

STRAIGHT FULLER
Cross Reference | NSN 5120-00-222-2126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-C-313 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-C-313 TY3CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-222-2126
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT FULLER |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| NOSE END WIDTH | 0.500 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 3 CLASS |
