NSN 5120-00-222-3244
Part Details | WOOD CAULKING IRON
5120-00-222-3244 Refer to Reference Drawing Group A before using item name. See also CAULKING TOOL, HAND; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGI671, GGG-I-671, GGGI671 TY4, GGG-I-671 TY4, MS157251, MS15725-1, 864G, 86-4G, 5120-00-222-3244, 00-222-3244, 5120002223244, 002223244
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-222-3244 | 03931 ( CAULKING IRON, WOOD ) |
REFERENCE DRAWINGS & PICTURES

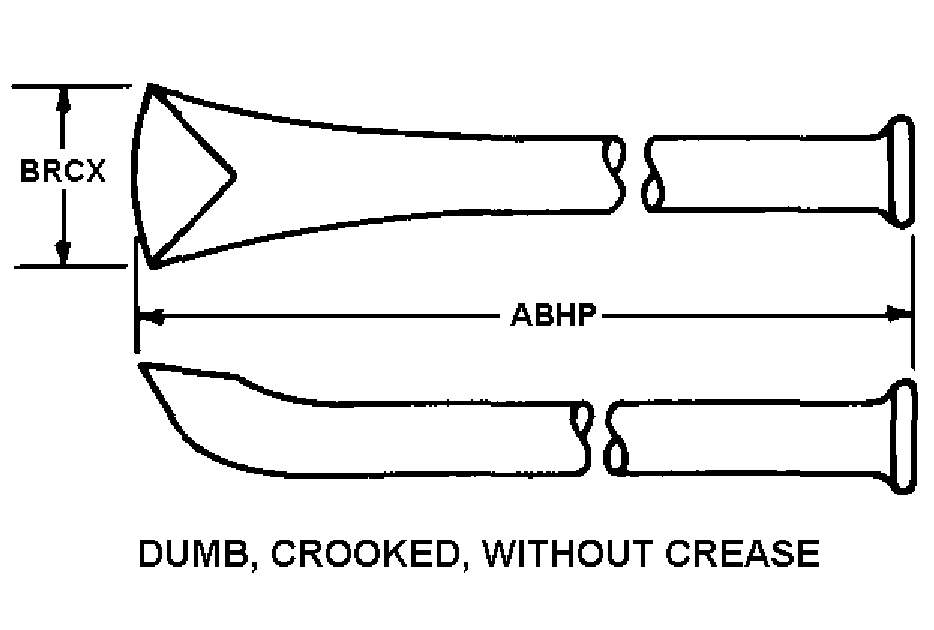

DUMB, CROOKED, WITHOUT CREASE
Cross Reference | NSN 5120-00-222-3244
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-I-671 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-I-671 TY4 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| MS15725-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 86-4G | 58005 | STORTZ JOHN AND SON INCORPORATED |
Technical Data | NSN 5120-00-222-3244
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DUMB, CROOKED, WITHOUT CREASE |
| OVERALL LENGTH | 7.500 INCHES NOMINAL |
| WORKING END WIDTH | 2.000 INCHES NOMINAL |
