NSN 5120-00-222-3245
Part Details | WOOD CAULKING IRON
5120-00-222-3245 Refer to Reference Drawing Group A before using item name. See also CAULKING TOOL, HAND; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGI671, GGG-I-671, GGGI671 TY1CLB, GGG-I-671 TY1CLB, 861B, 86-1B, 5120-00-222-3245, 00-222-3245, 5120002223245, 002223245
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-222-3245 | 03931 ( CAULKING IRON, WOOD ) |
REFERENCE DRAWINGS & PICTURES

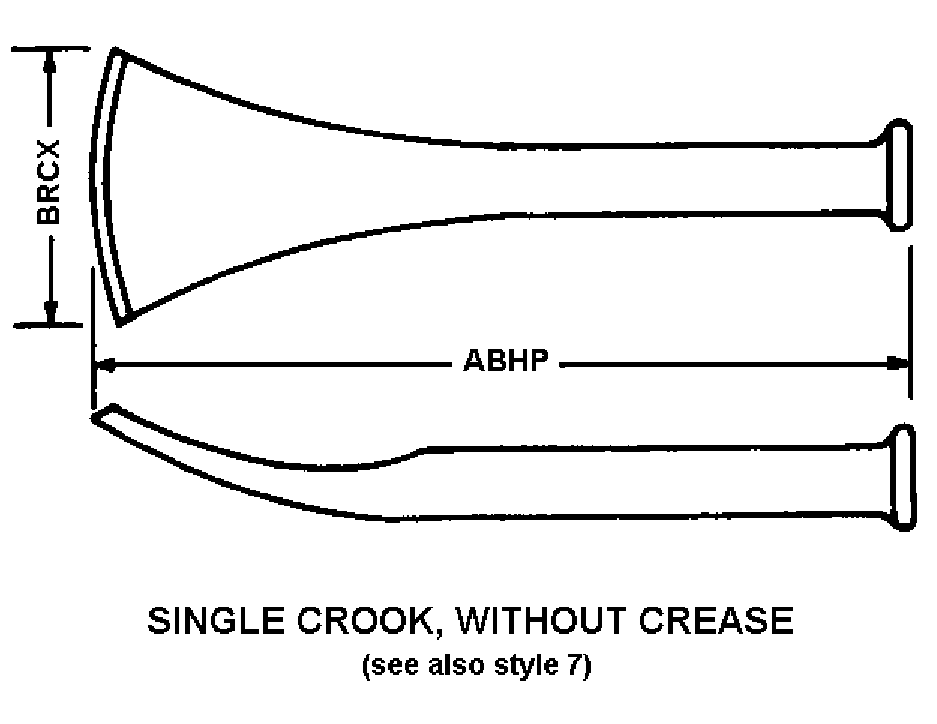

SINGLE CROOK, WITHOUT CREASE
Cross Reference | NSN 5120-00-222-3245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-I-671 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-I-671 TY1CLB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 86-1B | 58005 | STORTZ JOHN AND SON INCORPORATED |
Technical Data | NSN 5120-00-222-3245
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE CROOK, WITHOUT CREASE |
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| WORKING END WIDTH | 2.438 INCHES NOMINAL |
