NSN 5120-00-222-3248
Part Details | WOOD CAULKING IRON
5120-00-222-3248 Refer to Reference Drawing Group A before using item name. See also CAULKING TOOL, HAND; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGI671, GGG-I-671, GGGI671 TY7CLA, GGG-I-671 TY7CLA, MS157281, MS15728-1, 867E, 86-7E, 5120-00-222-3248, 00-222-3248, 5120002223248, 002223248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-222-3248 | 03931 ( CAULKING IRON, WOOD ) |

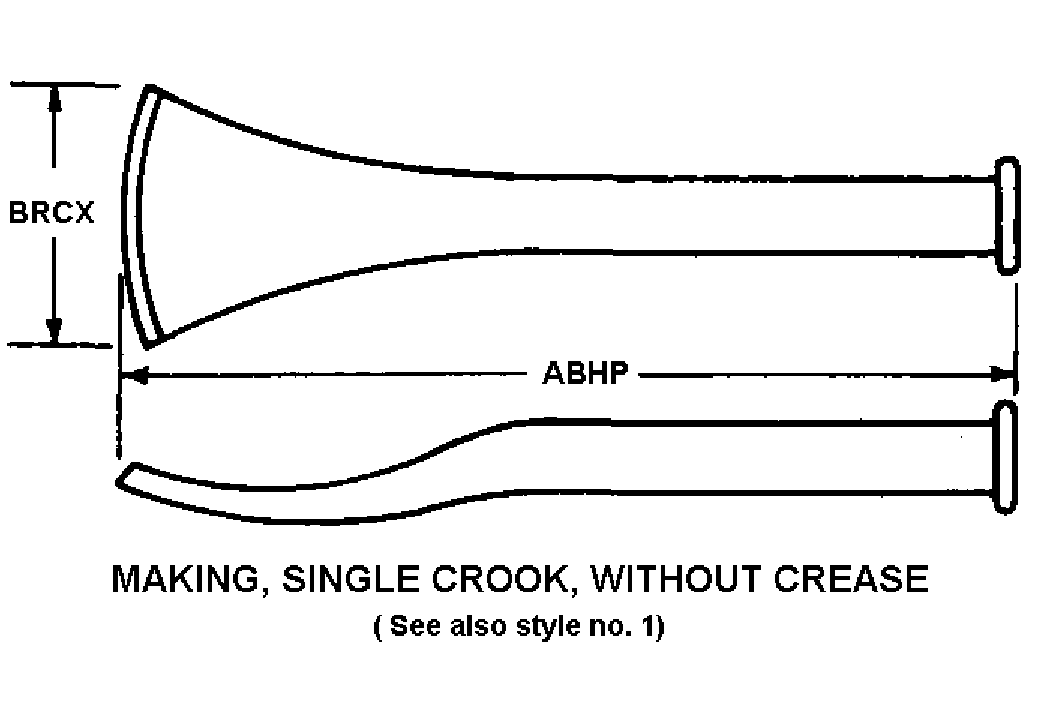

REFERENCE DRAWINGS & PICTURES
MAKING, SINGLE CROOK, WITHOUT CREASE
Cross Reference | NSN 5120-00-222-3248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-I-671 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-I-671 TY7CLA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| MS15728-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 86-7E | 58005 | STORTZ JOHN AND SON INCORPORATED |
Technical Data | NSN 5120-00-222-3248
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MAKING, SINGLE CROOK, WITHOUT CREASE |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| WORKING END WIDTH | 2.500 INCHES NOMINAL |
