NSN 5120-00-223-1294
Part Details | HAND CAULKING TOOL
5120-00-223-1294 Refer to Reference Drawing Group A before using item name. See also CAULKING IRON, WOOD; HAWSING IRON and YARNING IRON.
Alternate Parts: GGGC135, GGG-C-135, GGGC135 CL1ST1, GGG-C-135 CL1ST1, 30045, G201294, G20-1294, 5120-00-223-1294, 00-223-1294, 5120002231294, 002231294
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-223-1294 | 04454 ( CAULKING TOOL, HAND ) |
REFERENCE DRAWINGS & PICTURES

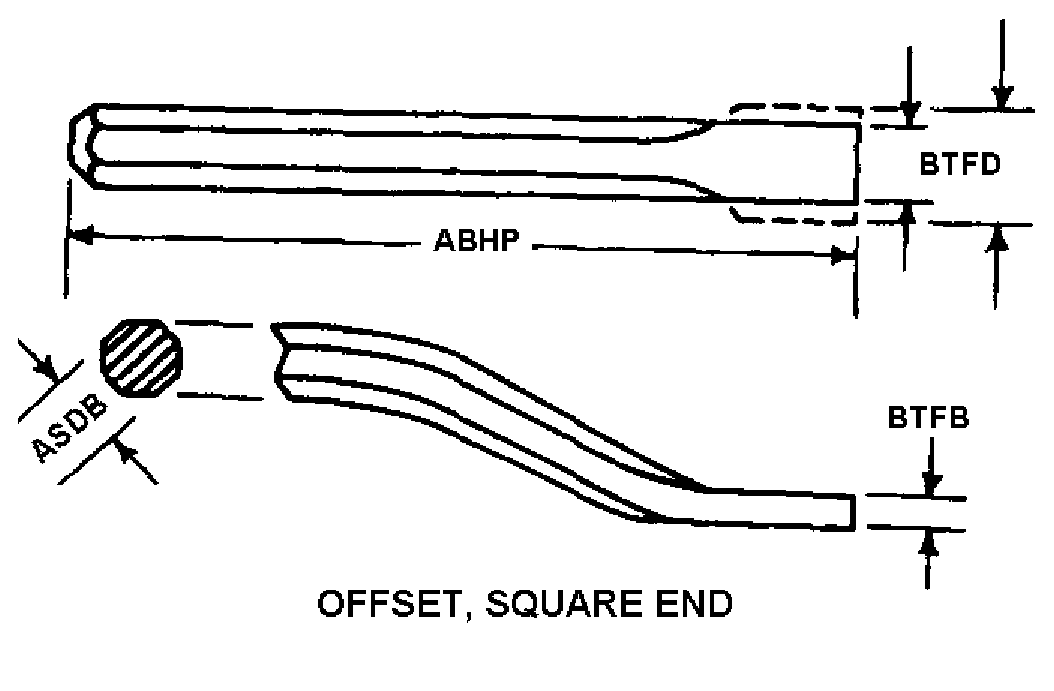

OFFSET, SQUARE END
Cross Reference | NSN 5120-00-223-1294
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-C-135 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-C-135 CL1ST1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 30045 | 91916 | MEPHISTO TOOL CO INC |
| G20-1294 | 20728 | PORTAGE TOOL COMPANY THE |
Technical Data | NSN 5120-00-223-1294
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET, SQUARE END |
| OVERALL LENGTH | 7.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| TIP THICKNESS | 0.375 INCHES NOMINAL |
| NOSE END WIDTH | 0.875 INCHES NOMINAL |
