NSN 5120-00-223-7976
Part Details | BOILER TUBE WIRE BRUSH
5120-00-223-7976 A sectional item used to clean the internal surfaces of boiler tubes, condenser tubes, heat exchanger tubes, and the like. It may be hand-operated or power driven and of the expanding or nonexpanding type. It does not contain a scraper.
Alternate Parts: 9001008, 44038, 63INCH, 6-3INCH, 5120-00-223-7976, 00-223-7976, 5120002237976, 002237976
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-223-7976 | 04807 ( BRUSH, WIRE, BOILER TUBE ) |
REFERENCE DRAWINGS & PICTURES

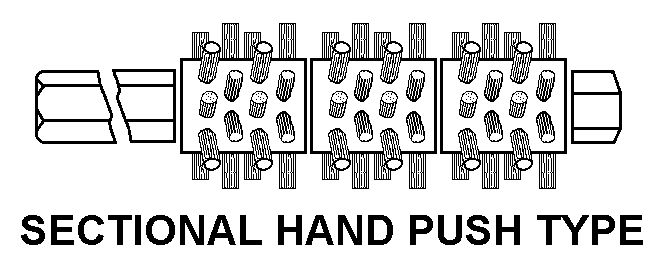

SECTIONAL HAND PUSH TYPE
Cross Reference | NSN 5120-00-223-7976
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9001008 | 60932 | PREVENTIVE MAINTENANCE SYSTEMS |
| 44038 | 17699 | WEILER CORPORATION |
| 6-3INCH | 98742 | WORCESTER BRUSH CO |
Technical Data | NSN 5120-00-223-7976
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SECTIONAL HAND PUSH TYPE |
| BOILER TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 3.000 INCHES NOMINAL |
| BOILER TUBE WALL THICKNESS FOR WHICH DESIGNED | 0.109 INCHES NOMINAL |
| POWER OPERATING FEATURE | NOT INCLUDED |
| CONNECTOR END DESIGN | A$B |
| CONNECTION FACILITY SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| CONNECTION FACILITY SCREW THREAD QUANTITY PER INCH | 18.000 |
| CONNECTION FACILITY SCREW THREAD SERIES DESIGNATOR | NPT |
