NSN 5120-00-223-8870
Part Details | JOINT BREAKING WEDGE
5120-00-223-8870 Refer to Reference Drawing Group A before using item name.
Alternate Parts: W8, W-8, W8, W-8, AA2488, A-A-2488, 5120-00-223-8870, 00-223-8870, 5120002238870, 002238870
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-223-8870 | 18462 ( WEDGE, JOINT BREAKING ) |
REFERENCE DRAWINGS & PICTURES

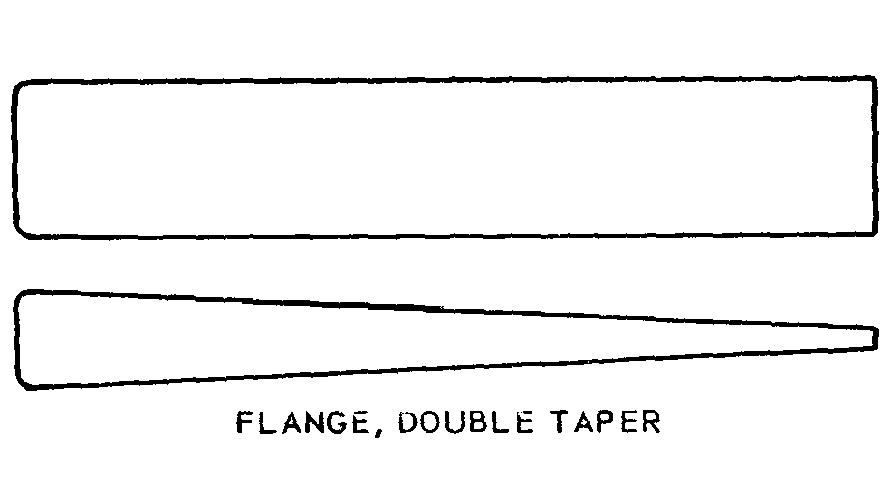

FLANGE, DOUBLE TAPER
Cross Reference | NSN 5120-00-223-8870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W-8 | 03306 | AMPCO METAL INC.DBA AMPCO METAL INC |
| W-8 | 01DJ4 | AMPCO PARTNERS, LTD.DBA AMPCO SAFETY TOOLS |
| A-A-2488 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5120-00-223-8870
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| WEDGE STYLE DESIGNATOR | FLANGE, DOUBLE TAPER |
| LENGTH | 8.000 INCHES NOMINAL |
| FEATURES PROVIDED | NONSPARKING |
| SPECIAL FEATURES | NONMAGNETIC |
