NSN 5120-00-224-1567
Part Details | SLIP JOINT PLIERS
5120-00-224-1567 A tool having gripping jaws and a joint adjustable to two or more positions to provide a wide or narrow opening for the jaws. See also PLIERS and PLIERS (as modified).
Alternate Parts: B107.500, B107.23M, B107.23, L26C, L26C, 40, 406, 40-6, GGGP471, GGG-P-471, GGGP471 TY2CL2STB, GGG-P-471 TY2CL2STB, B107.23M TY2CL1STB, B107.23 TY2CL1STB, 600900005, 600-900-005, 5120-00-224-1567, 00-224-1567, 5120002241567, 002241567
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-224-1567 | 19014 ( PLIERS, SLIP JOINT ) |
REFERENCE DRAWINGS & PICTURES

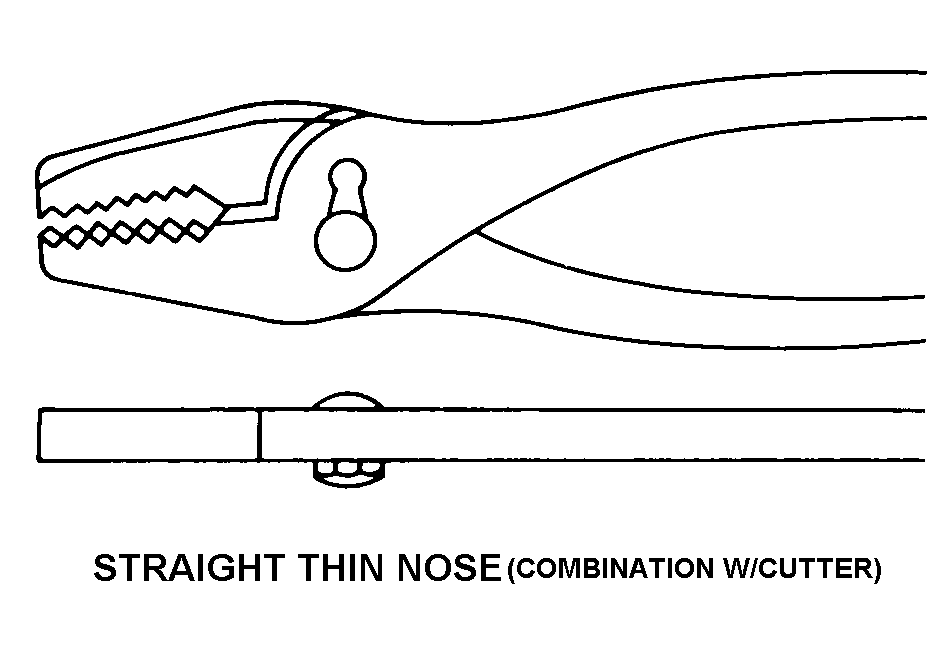

STRAIGHT THIN NOSE
Cross Reference | NSN 5120-00-224-1567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.500 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.23M | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.23 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| L26C | 96508 | APEX TOOL GROUP |
| L26C | 65LN0 | APEX TOOL GROUP, LLC |
| 40 | 26281 | DRESSER INDUSTRIES INC HAND TOOL DIV |
| 40-6 | 26281 | DRESSER INDUSTRIES INC HAND TOOL DIV |
| GGG-P-471 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-P-471 TY2CL2STB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.23M TY2CL1STB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.23 TY2CL1STB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 600-900-005 | 15090 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5120-00-224-1567
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| JAW ADJUSTMENT POSITION | 2 |
| PLIERS STYLE DESIGNATOR | STRAIGHT THIN NOSE |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.500 TO B107.23 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 1 CLASS AND B STYLE |
