NSN 5120-00-224-9326
Part Details | HAND SHOVEL
5120-00-224-9326 A tool with a broad, deep scoop or blade and a handle used primarily for digging or handling loose and bulky materials such as earth, sand, gravel, snow and the like. Excludes FIRE SHOVEL HAND and INTRENCHING TOOL, HAND. See also SPADE AND SPOON (as modified).
Alternate Parts: GGGS326, GGG-S-326, 5120002249326, 5120-00-224-9326, GGGS326 TY5CLAST1SZ2, GGG-S-326 TY5CLAST1SZ2, 5120-00-224-9326, 00-224-9326, 5120002249326, 002249326
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-224-9326 | 05411 ( SHOVEL, HAND ) |
REFERENCE DRAWINGS & PICTURES

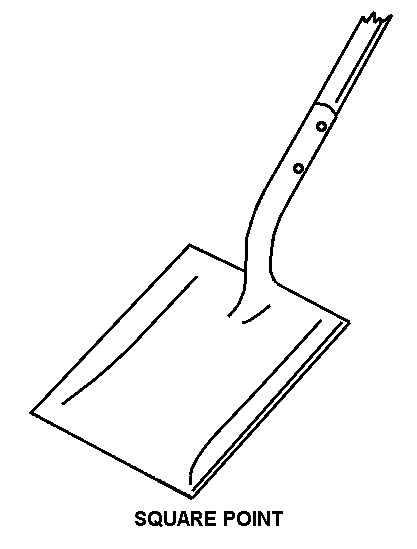

SQUARE POINT
Cross Reference | NSN 5120-00-224-9326
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-S-326 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-224-9326 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-S-326 TY5CLAST1SZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-224-9326
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | D-STYLE |
| DIGGING IMPLEMENT STYLE | SQUARE POINT |
| HANDLE LENGTH | 26.000 INCHES |
| SIZE DESIGNATOR | 2 |
| BLADE LENGTH | 11.500 INCHES MINIMUM AND 12.500 INCHES MAXIMUM |
| BLADE CONSTRUCTION TYPE | OPEN BACK |
| BLADE WIDTH | 9.500 INCHES MINIMUM AND 10.250 INCHES MAXIMUM |
| SPECIAL FEATURES | PLASTIC OR TUBULAR STEEL D-GRIP |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
