NSN 5120-00-224-9487
Part Details | JOINT BREAKING WEDGE
5120-00-224-9487 Refer to Reference Drawing Group A before using item name.
Alternate Parts: AA3035, A-A-3035, GGGW201, GGG-W-201, 5120002249487, 5120-00-224-9487, GGGW201 TY1, GGG-W-201 TY1, AA3035 SZ6, A-A-3035 SZ6, 70380, 5120-00-224-9487, 00-224-9487, 5120002249487, 002249487
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-224-9487 | 18462 ( WEDGE, JOINT BREAKING ) |
REFERENCE DRAWINGS & PICTURES

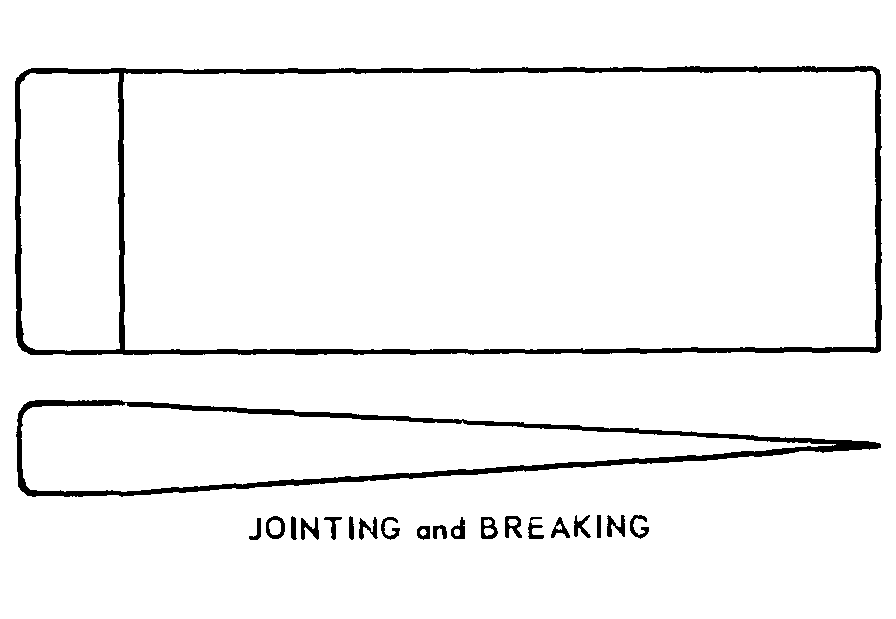

JOINTING AND BREAKING
Cross Reference | NSN 5120-00-224-9487
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-3035 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-201 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-224-9487 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-W-201 TY1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| A-A-3035 SZ6 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 70380 | 79202 | WARWOOD TOOL COMPANY |
Technical Data | NSN 5120-00-224-9487
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| WEDGE STYLE DESIGNATOR | JOINTING AND BREAKING |
| LENGTH | 10.000 INCHES NOMINAL |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
