NSN 5120-00-232-9504
Part Details | SPANNER WRENCH
5120-00-232-9504 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: ST25781, 5120-00-232-9504, 00-232-9504, 5120002329504, 002329504
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-232-9504 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

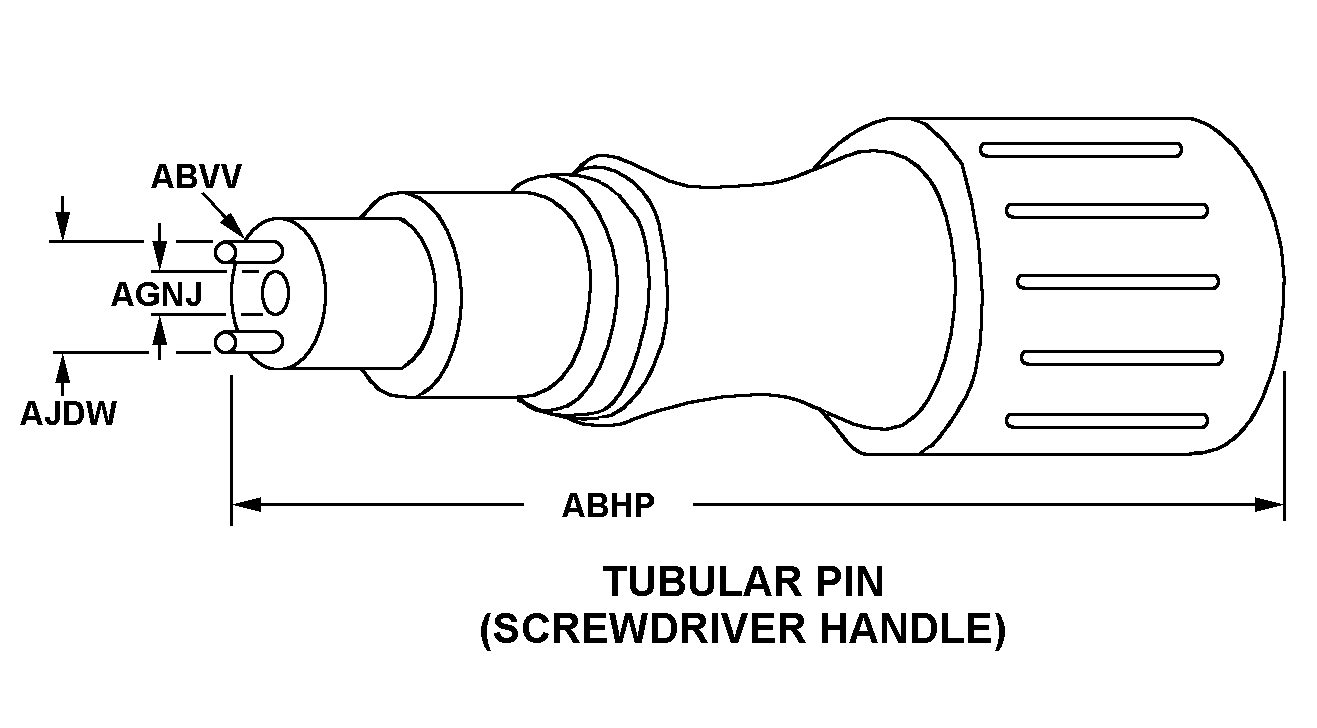

TUBULAR PIN
Cross Reference | NSN 5120-00-232-9504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST25781 | 65092 | SOLARTRON ELECTRONICS INCWESTON INSTRUMENTS DIV |
Technical Data | NSN 5120-00-232-9504
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR PIN |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| PIN DIAMETER | 0.058 INCHES NOMINAL |
| OPENING DIAMETER | 0.187 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 0.280 INCHES NOMINAL |
