NSN 5120-00-235-4670
Part Details | SPANNER WRENCH
5120-00-235-4670 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: C8119726, C81-1-9726, 394630, 39-4630, 0471, 0-471, 5120-00-235-4670, 00-235-4670, 5120002354670, 002354670
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 29, 1969 | 00-235-4670 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

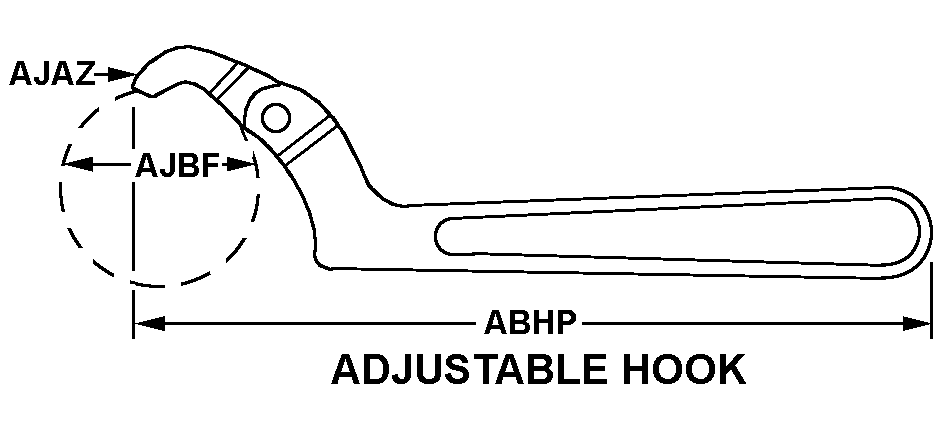

ADJUSTABLE HOOK
Cross Reference | NSN 5120-00-235-4670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C81-1-9726 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTERECBC |
| 39-4630 | 05506 | MARTIN SPROCKET AND GEAR INC |
| 0-471 | 65814 | TRW INCHAND TOOLS DIV |
Technical Data | NSN 5120-00-235-4670
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ADJUSTABLE HOOK |
| OVERALL LENGTH | 6.375 INCHES NOMINAL |
| HOOK THICKNESS | 0.343 INCHES NOMINAL |
| CIRCLE RANGE DIAMETER | 0.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| SPECIAL FEATURES | IN ACCORDANCE WITH U.S. ARMY EDGEWOOD ARSENAL DRAWING NUMBER C81-1-9726, REVISION A, DATED JANUARY 27, 1976 |
