NSN 5120-00-236-3679
Part Details | HAND HAMMER
5120-00-236-3679 A tool with a striking face on one or both ends of a metallic weighted head fixed crosswise to a handle. It is used to strike and/or drive objects, or beat malleable materials. For items stocked without FACE, HAMMER, INSERTED, see HOLDER, INSERTED HAMMER FACE. Excludes DRIVER, COOPER'S and mechanical hammers. See also MALLET (as modified).
Alternate Parts: AA1291, A-A-1291, GGGH86, GGG-H-86, GGGH86 TY10CL3, GGG-H-86 TY10CL3, 5120-00-236-3679, 00-236-3679, 5120002363679, 002363679
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-236-3679 | 05970 ( HAMMER, HAND ) |
REFERENCE DRAWINGS & PICTURES

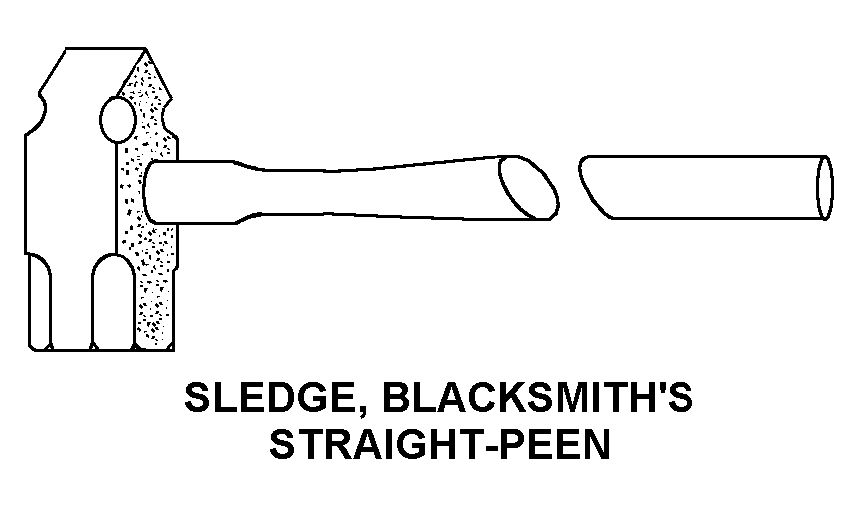

SLEDGE, BLACKSMITH'S STRAIGHT-PEEN
Cross Reference | NSN 5120-00-236-3679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-1291 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-H-86 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-H-86 TY10CL3 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-236-3679
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLEDGE, BLACKSMITH'S STRAIGHT-PEEN |
| HEAD WEIGHT | 8.000 POUNDS |
| NONDEFINITIVE SPEC/STD DATA | 10 TYPE AND 3 CLASS |
