NSN 5120-00-237-4962
Part Details | SPANNER WRENCH
5120-00-237-4962 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 1061629, MTMSL8, 5120-00-237-4962, 00-237-4962, 5120002374962, 002374962
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-237-4962 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

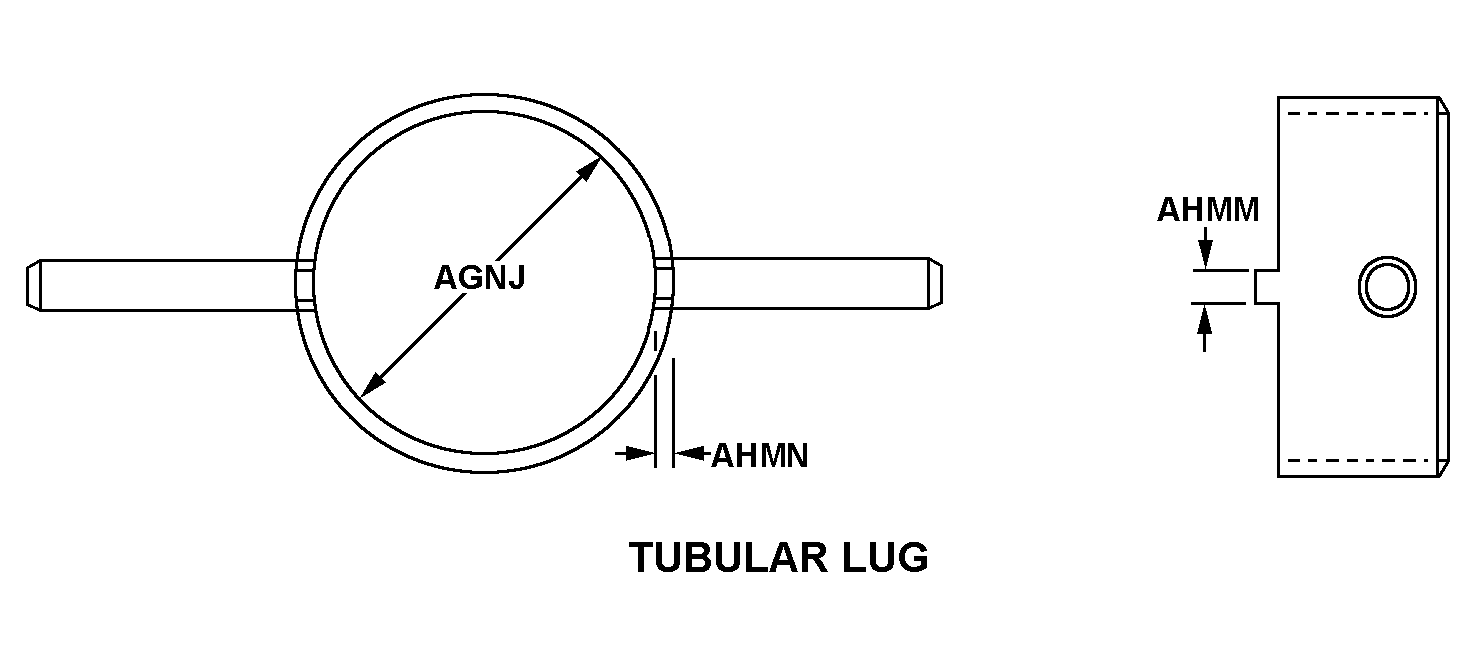

TUBULAR LUG
Cross Reference | NSN 5120-00-237-4962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1061629 | 12204 | DAIMLER CHRYSLER |
| MTMSL8 | 80604 | SPX CORPORATIONDBA O T C TOOL & EQUIP DIVISION DIV |
Technical Data | NSN 5120-00-237-4962
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OPENING DIAMETER | 6.000 INCHES NOMINAL |
| LUG WIDTH | 0.750 INCHES NOMINAL |
| LUG THICKNESS | 0.437 INCHES NOMINAL |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
