NSN 5120-00-237-4965
Part Details | SPANNER WRENCH
5120-00-237-4965 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: TE4965, TL204, SCD9822, SC-D-9822, 5120-00-237-4965, 00-237-4965, 5120002374965, 002374965
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-237-4965 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

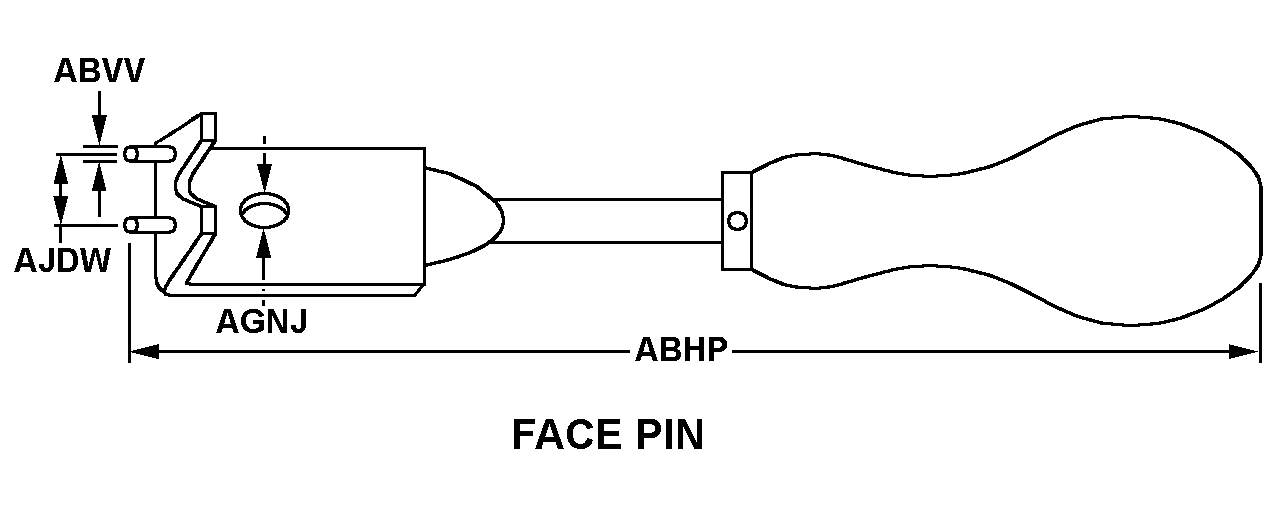

FACE PIN
Cross Reference | NSN 5120-00-237-4965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TE4965 | 0FKL0 | TIMBER EDGE MACHINE INC |
| TL204 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SC-D-9822 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5120-00-237-4965
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| PIN DIAMETER | 0.094 INCHES NOMINAL |
| OPENING DIAMETER | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 0.500 INCHES NOMINAL |
