NSN 5120-00-239-8252
Part Details | PLIERS
5120-00-239-8252 Refer to Reference Drawing Group A. See also PLIERS (as modified).
Alternate Parts: B107.500, B107.13M, B107.13, 67412, 67-412, 67412, 67-412, 67412, 67-412, GGGP00471, GGGP471, GGG-P-471, GGGP471 TY10, GGG-P-471 TY10, B107.13M TY2, B107.13 TY2, 283G, 40815, 40729, 8068433, PL291, PL-291, PL291, 5120-00-239-8252, 00-239-8252, 5120002398252, 002398252
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-239-8252 | 03978 ( PLIERS ) |
REFERENCE DRAWINGS & PICTURES

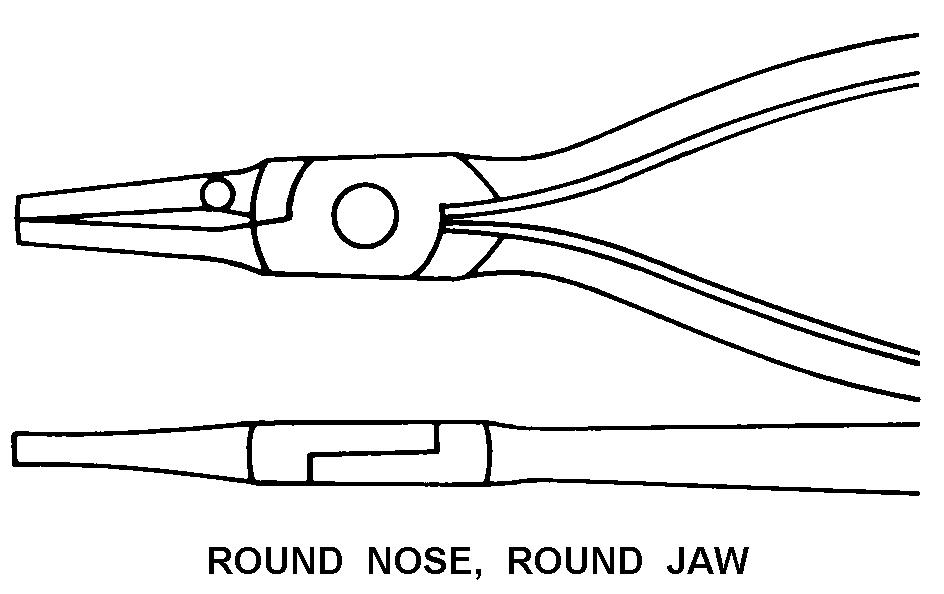

ROUND NOSE, ROUND JAW
Cross Reference | NSN 5120-00-239-8252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.500 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.13M | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.13 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| 67-412 | 636D0 | APEX TOOL GROUP, LLC |
| 67-412 | 03914 | ARMSTRONG BROS TOOL CO |
| 67-412 | 08292 | EASCO HAND TOOLS INCDIV DANAHER TOOL GROUP EASCO HAND |
| GGGP00471 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-P-471 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-P-471 TY10 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.13M TY2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.13 TY2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 283G | 47805 | INGERSOLL-RAND COPROTO TOOL DIV |
| 40815 | 58692 | MARSHALL-SWARTCHILD CO |
| 40729 | 58692 | MARSHALL-SWARTCHILD CO |
| 8068433 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| PL-291 | 84265 | VIGOR CO LP |
| PL291 | 50172 | VIGOR CODIV OF B JADOW AND SONS INC |
Technical Data | NSN 5120-00-239-8252
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| PLIERS STYLE DESIGNATOR | ROUND NOSE, ROUND JAW |
| INSULATED HANDLE | NOT PROVIDED |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.500 TO B107.13 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 4-1 TO 2 SIZE |
