NSN 5120-00-240-1414
Part Details | ADJUSTABLE WRENCH
5120-00-240-1414 A single or double end wrench having a frame and upper jaw(s) of one piece construction. It incorporates a mechanism designed to adjust the lower jaw to the desired size of wrench opening. The jaws are flat, parallel, and smooth. The handle is straight or S shaped.
Alternate Parts: B107.8, B107.100, 28418, 28-418, KEN5011180KA, KEN-501-1180KA, KEN5011180KA, KEN-501-1180KA, AA2344, A-A-2344, GGGW631, GGG-W-631, GGGW631 TY1CL1, GGG-W-631 TY1CL1, B107.8 TY1, 0553 4403, 41W490, 05902123, 059-02-123, 944606000, 11205, 5120-00-240-1414, 00-240-1414, 5120002401414, 002401414
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-240-1414 | 30272 ( WRENCH, ADJUSTABLE ) |
REFERENCE DRAWINGS & PICTURES

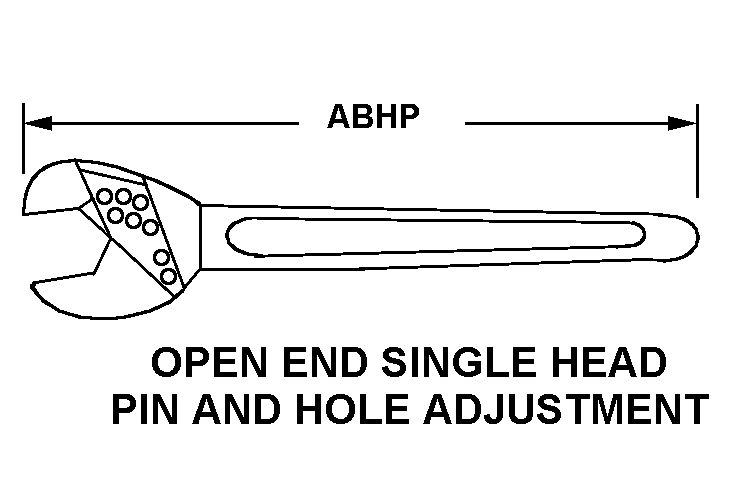

OPEN END SINGLE HEAD PIN AND HOLE ADJUSTMENT
Cross Reference | NSN 5120-00-240-1414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.8 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.100 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| 28-418 | 636D0 | APEX TOOL GROUP, LLC |
| KEN-501-1180KA | U1F01 | CROMWELL GROUP HOLDINGS LTD |
| KEN-501-1180KA | U4F87 | CROMWELL TOOLS LTD |
| A-A-2344 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-631 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-631 TY1CL1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.8 TY1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 0553 4403 | ZD484 | J. BLACKWOOD & SON PTY LTD |
| 41W490 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 059-02-123 | K4246 | PERRY SLINGSBY SYSTEMS |
| 944606000 | 53800 | SEARS, ROEBUCK AND CO.DBA SEARS |
| 11205 | 11915 | SMALLWOOD AND SON MACHINE CO |
Technical Data | NSN 5120-00-240-1414
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN END SINGLE HEAD PIN AND HOLE ADJUSTMENT |
| OVERALL LENGTH | 17.500 INCHES MINIMUM AND 19.000 INCHES MAXIMUM |
| HEAD THICKNESS | 1.218 INCHES MAXIMUM |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.100 TO B107.8 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
