NSN 5120-00-242-3254
Part Details | ADJUSTABLE WRENCH
5120-00-242-3254 A single or double end wrench having a frame and upper jaw(s) of one piece construction. It incorporates a mechanism designed to adjust the lower jaw to the desired size of wrench opening. The jaws are flat, parallel, and smooth. The handle is straight or S shaped.
Alternate Parts: 417P134, AA2346, A-A-2346, GGGW631, GGG-W-631, GGGW631 TY2SZ9, GGG-W-631 TY2SZ9, 5120002423254, 5120-00-242-3254, X40, 5120-00-242-3254, 00-242-3254, 5120002423254, 002423254
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-242-3254 | 30272 ( WRENCH, ADJUSTABLE ) |

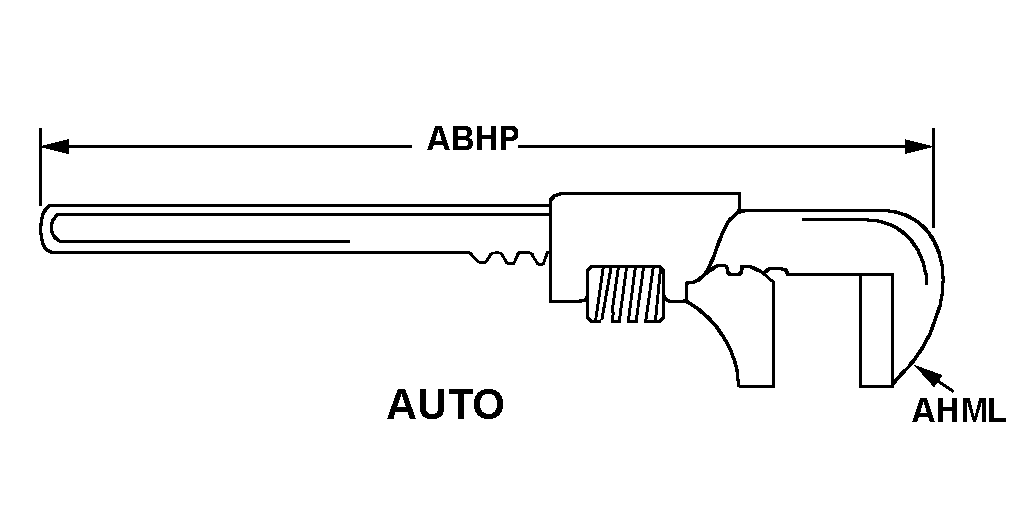

REFERENCE DRAWINGS & PICTURES
AUTO
Cross Reference | NSN 5120-00-242-3254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 417P134 | 44940 | CUMMINS POWER GENERATION INC. |
| A-A-2346 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-631 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-631 TY2SZ9 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 5120-00-242-3254 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| X40 | 47805 | INGERSOLL-RAND COPROTO TOOL DIV |
Technical Data | NSN 5120-00-242-3254
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AUTO |
| OVERALL LENGTH | 8.500 INCHES MINIMUM AND 9.500 INCHES MAXIMUM |
| HEAD THICKNESS | 0.375 INCHES MINIMUM |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
