NSN 5120-00-242-3256
Part Details | SOCKET WRENCH HANDLE
5120-00-242-3256 An item having a square external end and designed to fit into the internal end of a wrench socket or attachment and to which force is applied to drive the socket. Excludes torque indicating and other torque controlled items. See also WRENCH, RATCHET.
Alternate Parts: B107.10M, B107.10, 10943, 10-943, H2247B, 4574, AA2167, A-A-2167, GGGW641, GGG-W-641, GGGW641 TY3CL3STB, GGG-W-641 TY3CL3STB, B107.10M TY1CL3ST2, B107.10 TY1CL3STB, TM4A, 5120-00-242-3256, 00-242-3256, 5120002423256, 002423256
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-242-3256 | 03493 ( HANDLE, SOCKET WRENCH ) |
REFERENCE DRAWINGS & PICTURES

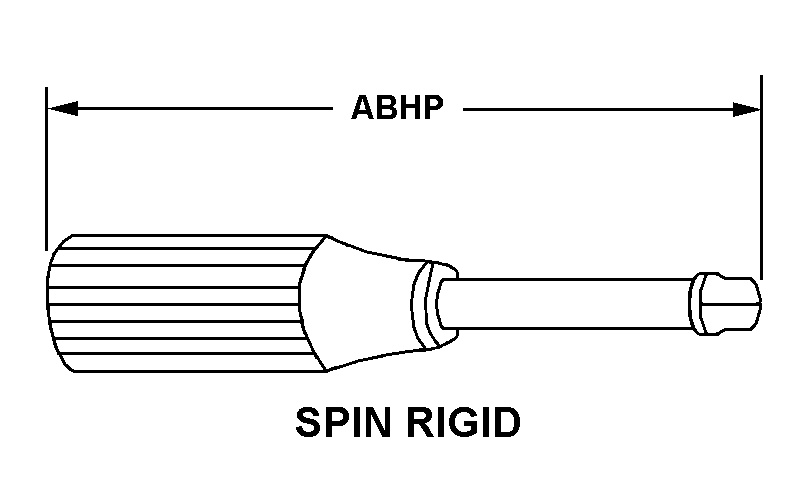

SPIN RIGID
Cross Reference | NSN 5120-00-242-3256
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.10M | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.10 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| 10-943 | 636D0 | APEX TOOL GROUP, LLC |
| H2247B | 49673 | DOWTY RFL INDUSTRIES INC |
| 4574 | 18949 | DURO METAL PRODUCTS CO |
| A-A-2167 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-641 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-641 TY3CL3STB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.10M TY1CL3ST2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.10 TY1CL3STB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| TM4A | C7127 | SNAP-ON HOLDINGS GMBHDBA SUN DIAGNOSTICS |
Technical Data | NSN 5120-00-242-3256
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPIN RIGID |
| OVERALL LENGTH | 4.625 INCHES MINIMUM AND 6.000 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.10 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND B STYLE |
