NSN 5120-00-243-2802
Part Details | TIMBER WEDGE
5120-00-243-2802 Refer to Reference Drawing Group AD before using item name.
Alternate Parts: B107.43, 5120-00-243-2802, 00-243-2802, 5120002432802, 002432802
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-243-2802 | 05651 ( WEDGE, TIMBER ) |
REFERENCE DRAWINGS & PICTURES

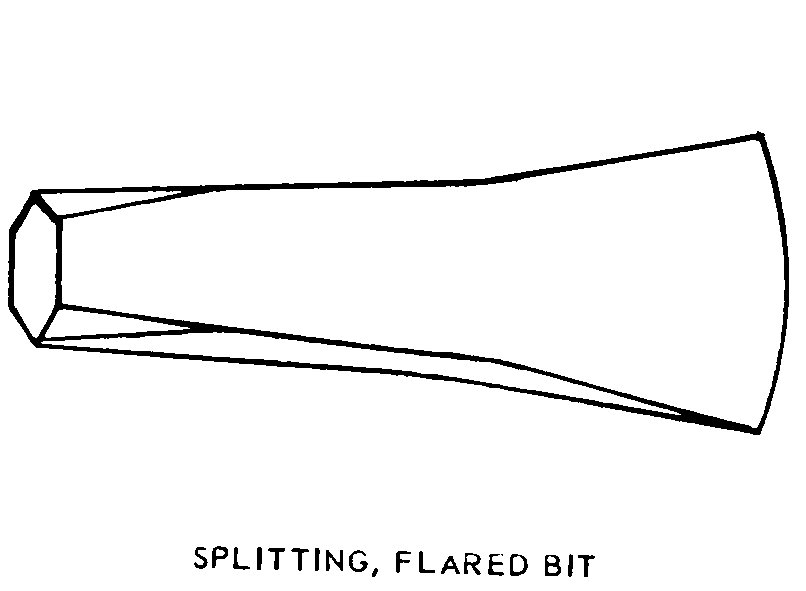

SPLITTING, FLARED BIT
Cross Reference | NSN 5120-00-243-2802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.43 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
Technical Data | NSN 5120-00-243-2802
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| WEDGE STYLE DESIGNATOR | SPLITTING, FLARED BIT |
| WEIGHT | 6.000 POUNDS |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.43 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
