NSN 5120-00-245-0423
Part Details | RETAINING RING PLIERS
5120-00-245-0423 See also PLIERS and PLIERS (as modified).
Alternate Parts: 472 SIZE J2, 5120-00-245-0423, 00-245-0423, 5120002450423, 002450423
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JUN 09, 1973 | 00-245-0423 | 19019 ( PLIERS, RETAINING RING ) |
REFERENCE DRAWINGS & PICTURES

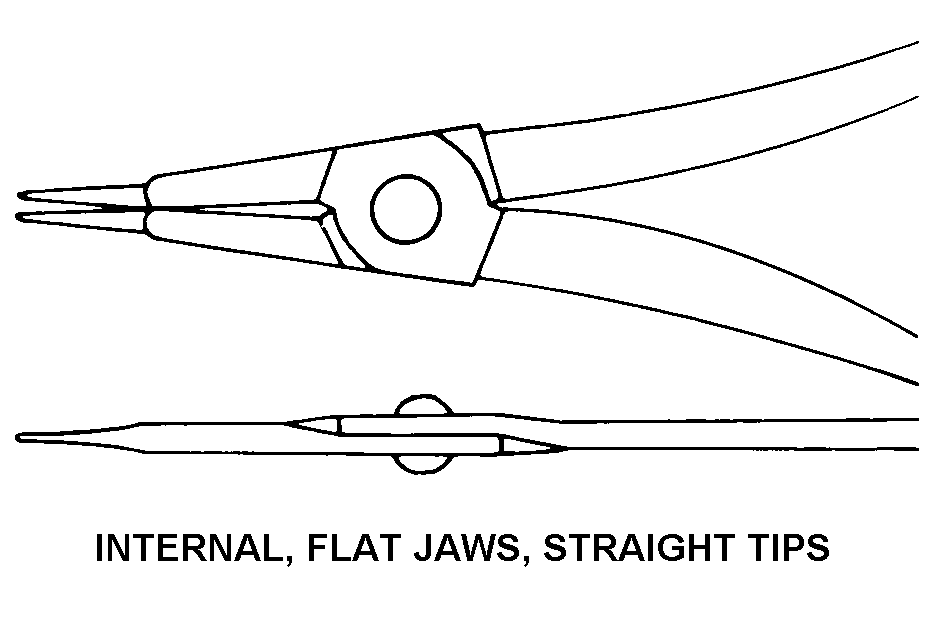

INTERNAL, FLAT JAWS, STRAIGHT TIPS
Cross Reference | NSN 5120-00-245-0423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 472 SIZE J2 | 15526 | METRIC AND MULTISTANDARDCOMPONENTS CORP |
Technical Data | NSN 5120-00-245-0423
| Characteristic | Specifications |
|---|---|
| PLIERS STYLE DESIGNATOR | INTERNAL, FLAT JAWS, STRAIGHT TIPS |
| TIP ANGLE IN DEG | 0.0 |
| RING TYPE ACCOMMODATED | 19 TO 60 MM |
| RING SIZE/PLIERS TIP DIAMETER | 1.8 MM DIA TIP |
| SPECIAL FEATURES | WITHOUT SPRING |
