NSN 5120-00-247-0868
Part Details | CRAFTSMAN'S TWEEZERS
5120-00-247-0868 A hand tool used by jewelers, opticians, and the like. It is designed to produce a gripping action by the spring tension type blades. Excludes FORCEPS (as modified) and TWEEZERS, HAIR.
Alternate Parts: 41T04204900, GGGT870, GGG-T-870, 5120002470868, 5120-00-247-0868, GGGT870 TY2CL1DEAST1, GGG-T-870 TY2CL1DEAST1, 166790, HDW16, HDW1-6, 43114, 5120-00-247-0868, 00-247-0868, 5120002470868, 002470868
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-247-0868 | 06965 ( TWEEZERS, CRAFTSMAN'S ) |

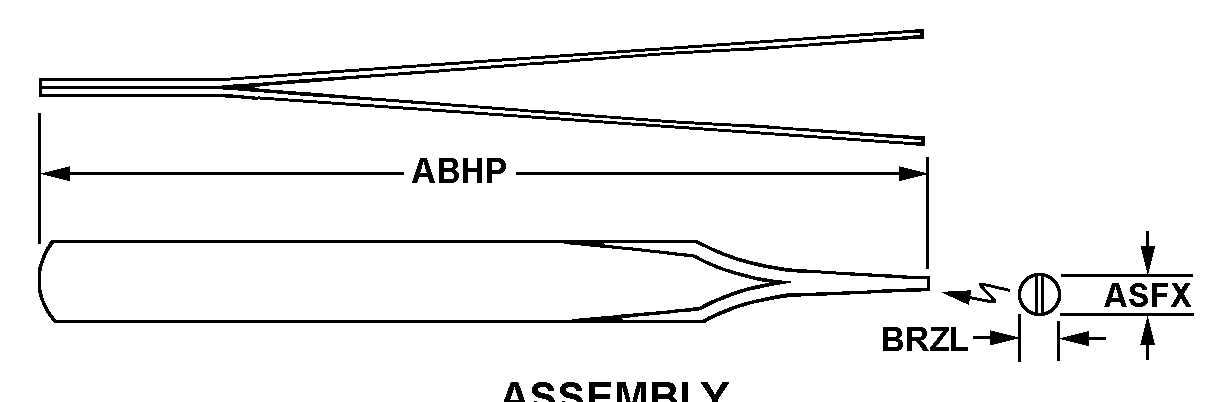

REFERENCE DRAWINGS & PICTURES
ASSEMBLY
Cross Reference | NSN 5120-00-247-0868
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41T04204900 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| GGG-T-870 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-247-0868 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-T-870 TY2CL1DEAST1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 166790 | 35643 | LEICA GEOSYSTEMS, INC.DIV HEXAGON GEOSYSTEMS |
| HDW1-6 | 35643 | LEICA GEOSYSTEMS, INC.DIV HEXAGON GEOSYSTEMS |
| 43114 | 58692 | MARSHALL-SWARTCHILD CO |
Technical Data | NSN 5120-00-247-0868
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ASSEMBLY |
| OVERALL LENGTH | 4.375 INCHES NOMINAL |
| CLOSED TIP THICKNESS | 0.005 INCHES MINIMUM AND 0.020 INCHES MAXIMUM |
| TIP WIDTH | 0.005 INCHES MINIMUM AND 0.015 INCHES MAXIMUM |
