NSN 5120-00-250-6024
Part Details | SOCKET WRENCH HANDLE BAR
5120-00-250-6024 A hand tool designed to fit through the hole in the body of a socket wrench to provide leverage. It may include a means of preventing the socket wrench from sliding off. Excludes HANDLE, SOCKET WRENCH; and EXTENION, SOCKET WRENCH.
Alternate Parts: GGGW641, GGG-W-641, 5120-00-250-6024, 00-250-6024, 5120002506024, 002506024
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-250-6024 | 05390 ( BAR, SOCKET WRENCH HANDLE ) |

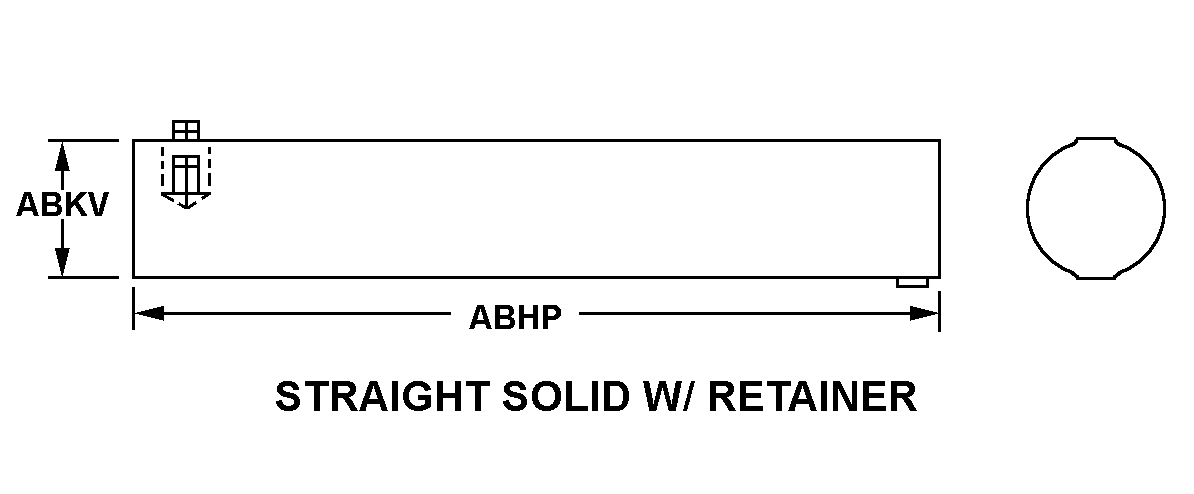

REFERENCE DRAWINGS & PICTURES
STRAIGHT SOLID W/RETAINER
Cross Reference | NSN 5120-00-250-6024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-641 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5120-00-250-6024
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SOLID W/RETAINER |
| OVERALL LENGTH | 20.000 INCHES MINIMUM AND 32.000 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.855 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
