NSN 5120-00-252-0262
Part Details | TORQUE WRENCH ADAPTER
5120-00-252-0262 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.
Alternate Parts: M89823073B, M8982/3-073B, MILW8982, MIL-W-8982, 5120-00-252-0262, 00-252-0262, 5120002520262, 002520262
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | FEB 21, 1969 | 00-252-0262 | 60023 ( ADAPTER, TORQUE WRENCH ) |

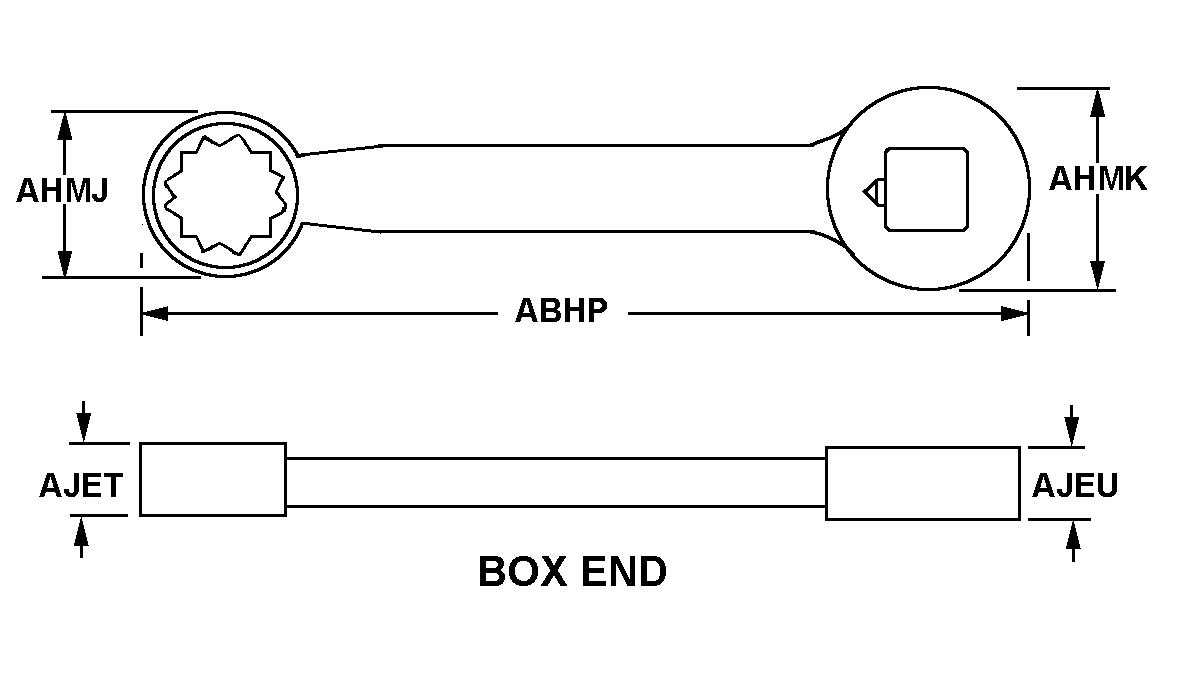

REFERENCE DRAWINGS & PICTURES
BOX END
Cross Reference | NSN 5120-00-252-0262
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M8982/3-073B | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-W-8982 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5120-00-252-0262
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BOX END |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| WRENCHING END OUTSIDE DIAMETER | 0.359 INCHES MAXIMUM |
| DRIVE END OUTSIDE DIAMETER | 0.760 INCHES MAXIMUM |
| WRENCHING END HEAD THICKNESS | 0.250 INCHES MAXIMUM |
| DRIVE END HEAD THICKNESS | 0.458 INCHES MAXIMUM |
| WRENCHING SURFACE FLUTE QUANTITY | 12 |
| FEATURES PROVIDED | MANUAL TOOL |
| SPECIAL FEATURES | NO. 7 SPLINE SIZE |
