NSN 5120-00-262-8496
Part Details | PIPE WRENCH
5120-00-262-8496 A wrench having serrated jaws, chain, girth, or strap at one end. It is designed for installing or removing pipe or pipe fittings. Excludes WRENCH, PIPE, INTERNAL GRIPPING.
Alternate Parts: GGGW00651, GGG-W-00651, GGGW00651 TY4SZ2, GGG-W-00651 TY4SZ2, 5120-00-262-8496, 00-262-8496, 5120002628496, 002628496
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-262-8496 | 03492 ( WRENCH, PIPE ) |
REFERENCE DRAWINGS & PICTURES

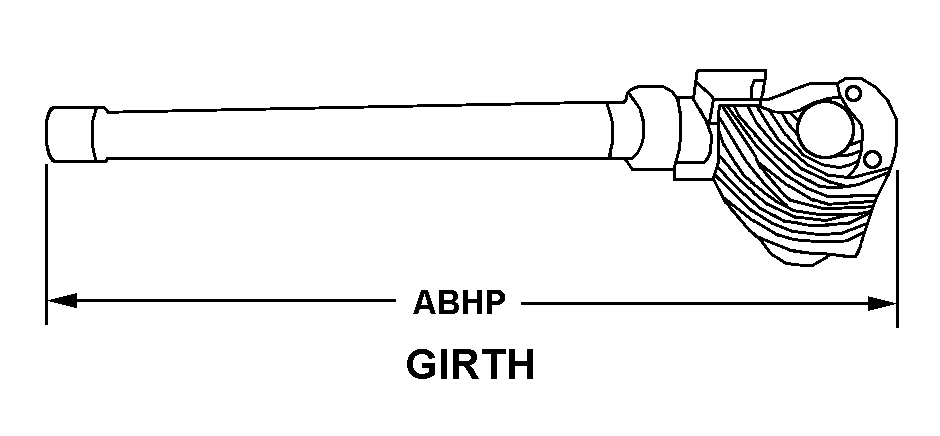

GIRTH
Cross Reference | NSN 5120-00-262-8496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-00651 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-00651 TY4SZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-262-8496
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GIRTH |
| OVERALL LENGTH | 20.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 2 SIZE |
