NSN 5120-00-264-3784
Part Details | SPANNER WRENCH
5120-00-264-3784 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 336720PC8, 3367-20PC8, 299503PCLN161, 2995-03PCLN161, 296748PC8, 2967-48PC8, 5646202937929ALT8PC8, 564-6202-937929ALT8PC8, 5643101937728PCLN161, 564-3101-937728PCLN161, 3206505798944PC8, 320-6505-798944PC8, 31962021183745ALT1PC8, 319-6202-1183745ALT1PC8, 5120-00-264-3784, 00-264-3784, 5120002643784, 002643784
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-264-3784 | 03476 ( WRENCH, SPANNER ) |

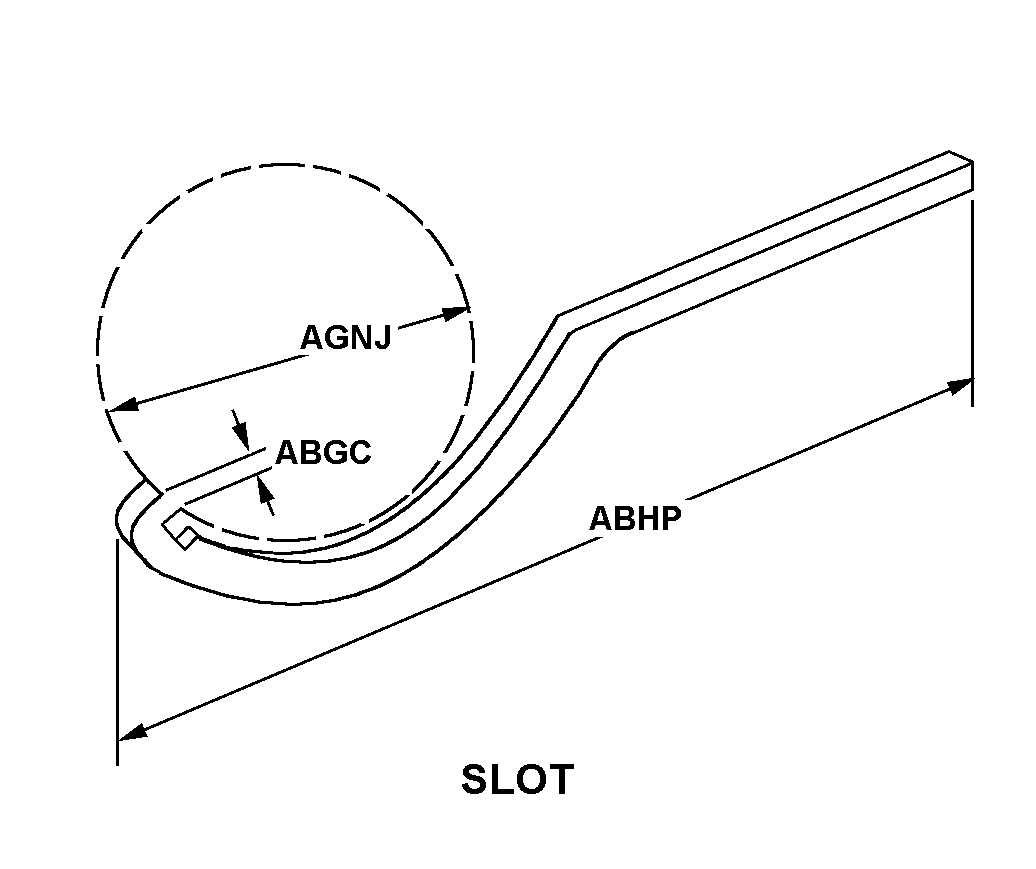

REFERENCE DRAWINGS & PICTURES
SLOT
Cross Reference | NSN 5120-00-264-3784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3367-20PC8 | 96169 | ELECTRIC BOAT CORPORATION |
| 2995-03PCLN161 | 96169 | ELECTRIC BOAT CORPORATION |
| 2967-48PC8 | 96169 | ELECTRIC BOAT CORPORATION |
| 564-6202-937929ALT8PC8 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 564-3101-937728PCLN161 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 320-6505-798944PC8 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 319-6202-1183745ALT1PC8 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5120-00-264-3784
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOT |
| SLOT WIDTH | 0.531 INCHES NOMINAL |
| OVERALL LENGTH | 11.875 INCHES NOMINAL |
| OPENING DIAMETER | 5.375 INCHES NOMINAL |
