NSN 5120-00-264-5217
Part Details | BOX WRENCH
5120-00-264-5217 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: GST1409, AA1340, A-A-1340, GGGW636, GGG-W-636, GGGW636 TY18CL2, GGG-W-636 TY18CL2, X940B, 5120-00-264-5217, 00-264-5217, 5120002645217, 002645217
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-264-5217 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

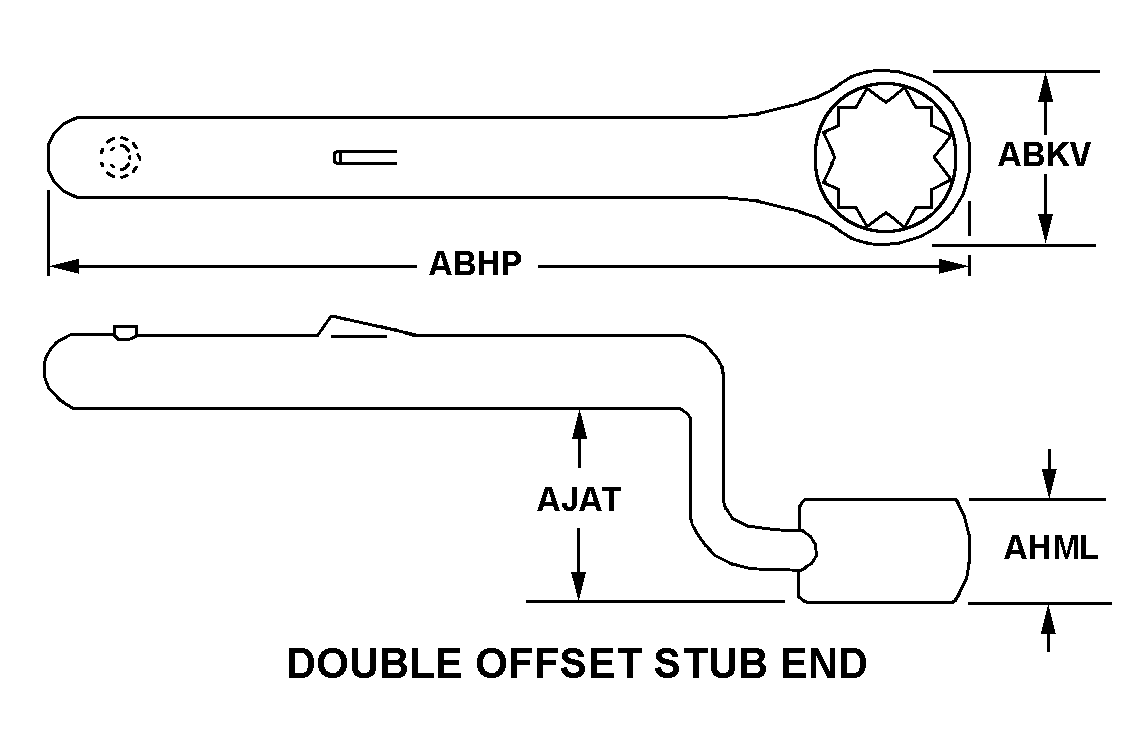

DOUBLE OFFSET STUB END
Cross Reference | NSN 5120-00-264-5217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GST1409 | 26536 | DRESSER INDUSTRIES INC P AND M MFGDIV |
| A-A-1340 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY18CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| X940B | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
Technical Data | NSN 5120-00-264-5217
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE OFFSET STUB END |
| OVERALL LENGTH | 13.125 INCHES MINIMUM |
| OUTSIDE DIAMETER | 4.562 INCHES MAXIMUM |
| HEAD THICKNESS | 1.750 INCHES MAXIMUM |
| OFFSET HEIGHT | 2.375 INCHES MINIMUM |
| SPECIAL MARKINGS | WRENCH SIZE |
