NSN 5120-00-270-3121
Part Details | TORQUE WRENCH
5120-00-270-3121 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.
Alternate Parts: TCI1600, TCI-1600, GGGW686, GGG-W-686, GGGW686 TY3CL1, GGG-W-686 TY3CL1, 28420, TCI1600, TCI-1600, 5120-00-270-3121, 00-270-3121, 5120002703121, 002703121
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-270-3121 | 17611 ( WRENCH, TORQUE ) |
REFERENCE DRAWINGS & PICTURES

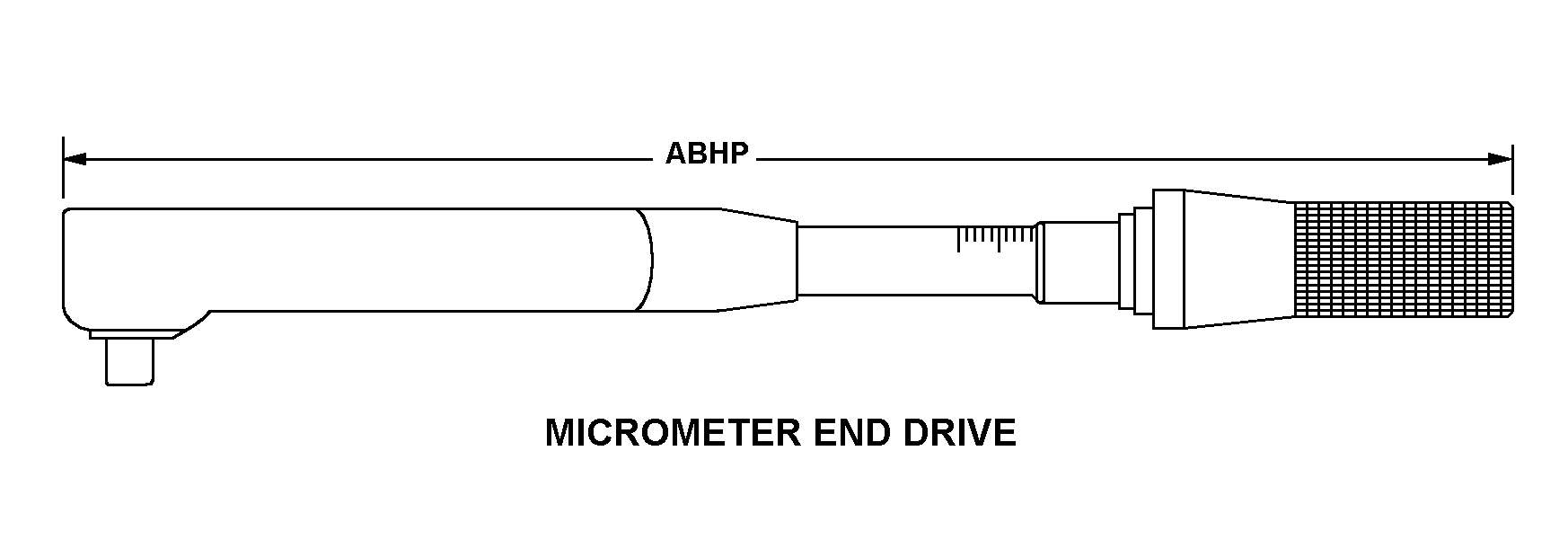

MICROMETER END DRIVE
Cross Reference | NSN 5120-00-270-3121
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TCI-1600 | 03705 | APEX TOOL GROUP, LLC |
| GGG-W-686 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-686 TY3CL1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 28420 | 30106 | UTICA TOOL CO INC |
| TCI-1600 | 30106 | UTICA TOOL CO INC |
Technical Data | NSN 5120-00-270-3121
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MICROMETER END DRIVE |
| TORQUE CAPACITY | 700.0 INCH-POUNDS MINIMUM AND 1600.0 INCH-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | MICROMETER |
| TORQUE SIGNAL METHOD | AUDIBLE |
| TORQUE SCALE GRADUATION | 10.00 INCH-POUNDS |
| FURNISHED ITEMS | CASE |
| SPECIAL FEATURES | PLAIN HEAD |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 1 CLASS |
