NSN 5120-00-277-1216
Part Details | CROWFOOT SOCKET WRENCH HEAD
5120-00-277-1216 A component with a square internal drive eccentric to an open-wall opening designed to receive any of a series of wrenching sockets, adapters, or attachments. See also CROWFOOT ATTACHMENT, SOCKET WRENCH and SOCKET, CROWFOOT WRENCH HEAD.
Alternate Parts: GGGW646, GGG-W-646, GGGW646 TY1CL1STBFMBSZ0.375, GGG-W-646 TY1CL1STBFMBSZ0.375, 5120-00-277-1216, 00-277-1216, 5120002771216, 002771216
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-1216 | 17104 ( HEAD, CROWFOOT SOCKET WRENCH ) |
REFERENCE DRAWINGS & PICTURES

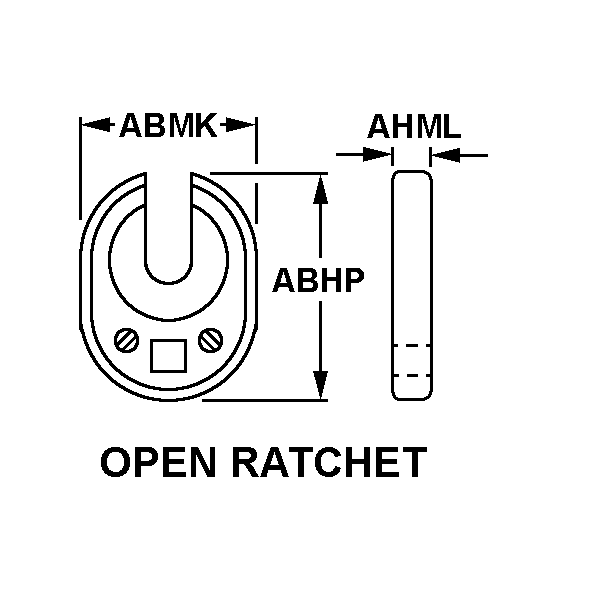

OPEN RATCHET
Cross Reference | NSN 5120-00-277-1216
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-646 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-646 TY1CL1STBFMBSZ0.375 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-277-1216
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN RATCHET |
| OVERALL LENGTH | 1.820 INCHES NOMINAL |
| OVERALL WIDTH | 1.380 INCHES NOMINAL |
| HEAD THICKNESS | 0.322 INCHES NOMINAL |
| FEATURES PROVIDED | REVERSIBLE RATCHET |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 CLASS AND B STYLE AND B FORM AND 0.375 SIZE |
