NSN 5120-00-277-1512
Part Details | SOCKET HEAD SCREW CROWFOOT WRENCH ATTACHMENT
5120-00-277-1512 An attachment designed with a collar to fit into a HEAD, CROWFOOT SOCKET WRENCH having a hexagon plug (drive tang) extending therefrom.
Alternate Parts: GGGW646, GGG-W-646, 5120-00-277-1512, 00-277-1512, 5120002771512, 002771512
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-1512 | 17760 ( CROWFOOT WRENCH ATTACHMENT, SOCKET HEAD SCREW ) |

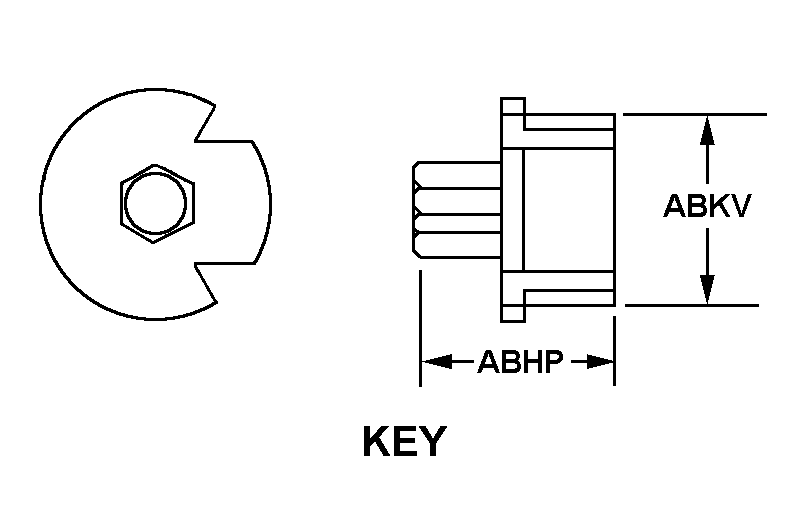

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5120-00-277-1512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-646 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5120-00-277-1512
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| OVERALL LENGTH | 1.331 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.175 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 3 CLASS AND A FORM |
