NSN 5120-00-277-1580
Part Details | BOX WRENCH
5120-00-277-1580 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: GGGW636, GGG-W-636, GGGW636 TY9CL2, GGG-W-636 TY9CL2, 2638, J2638, 2638, 5120-00-277-1580, 00-277-1580, 5120002771580, 002771580
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-1580 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

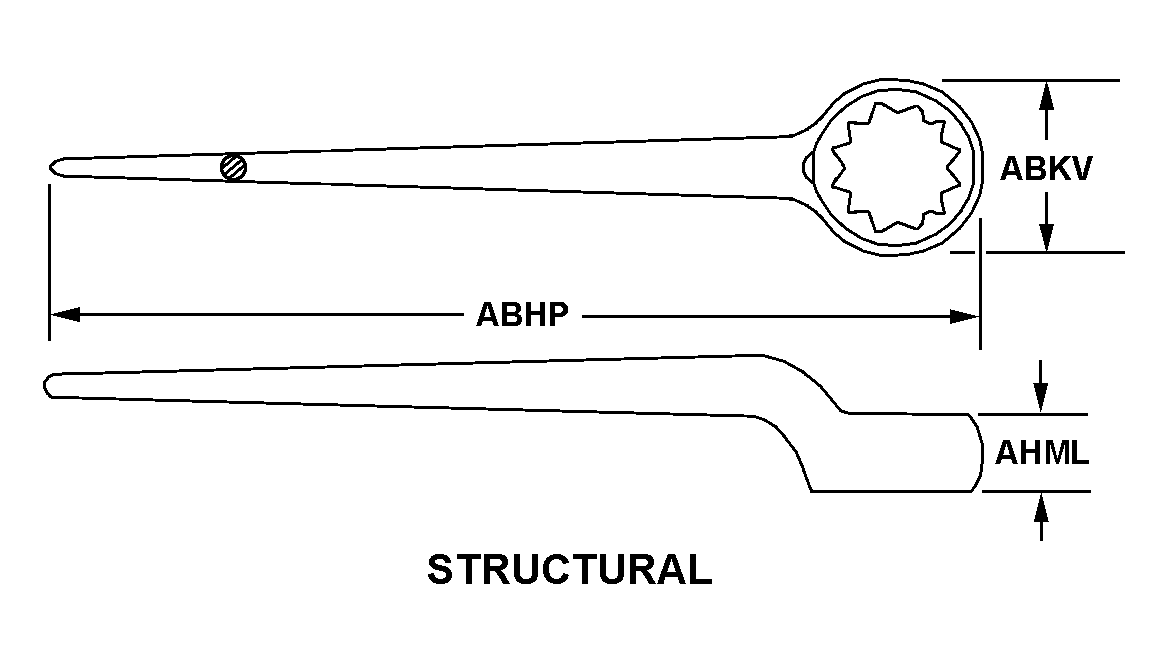

STRUCTURAL
Cross Reference | NSN 5120-00-277-1580
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY9CL2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 2638 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| J2638 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| 2638 | 93389 | STANLEY-PROTO INDUSTRIAL WORKSDIV OF THE STANLEY WORKS |
Technical Data | NSN 5120-00-277-1580
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRUCTURAL |
| OVERALL LENGTH | 28.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.719 INCHES NOMINAL |
| HEAD THICKNESS | 1.625 INCHES MAXIMUM |
| SPECIAL MARKINGS | WRENCH SIZE |
