NSN 5120-00-277-2682
Part Details | BOX WRENCH
5120-00-277-2682 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: AA1346, A-A-1346, GGGW636, GGG-W-636, GGGW636 TY2, GGG-W-636 TY2, 5120-00-277-2682, 00-277-2682, 5120002772682, 002772682
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-2682 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

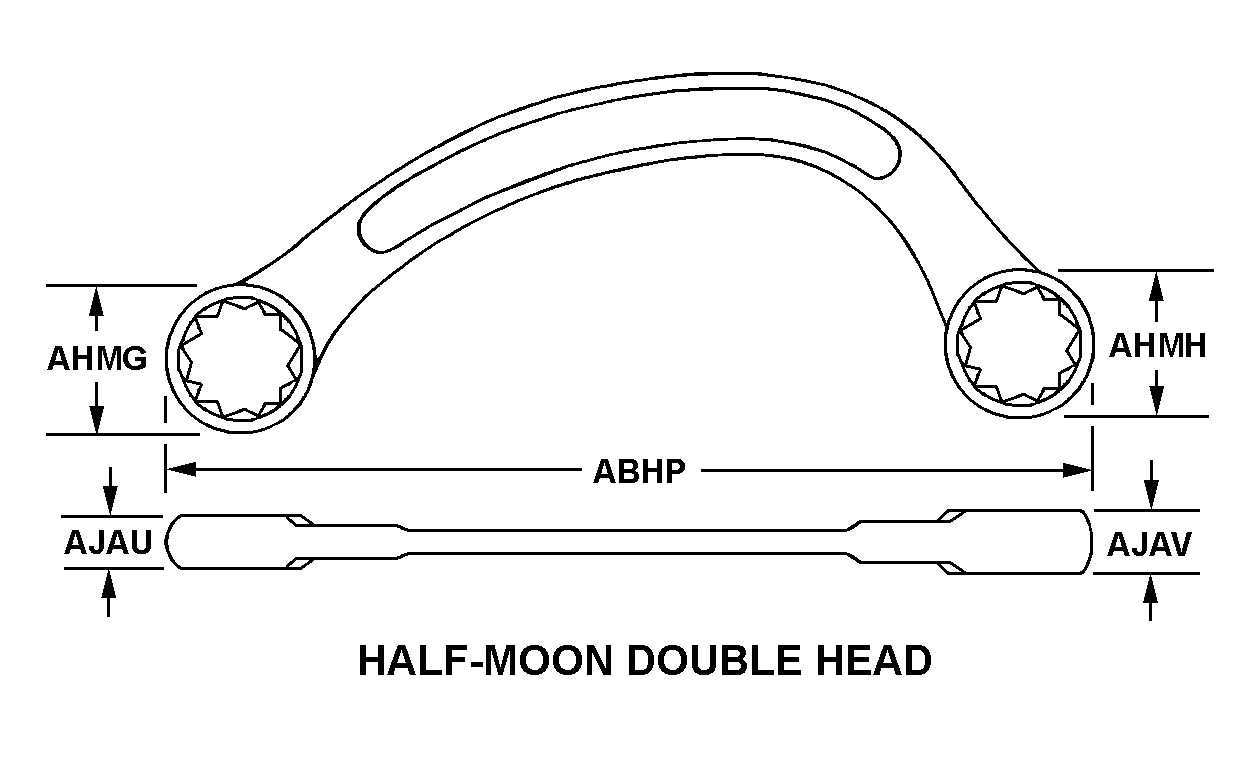

HALF-MOON DOUBLE HEAD
Cross Reference | NSN 5120-00-277-2682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-1346 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-277-2682
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF-MOON DOUBLE HEAD |
| OVERALL LENGTH | 7.625 INCHES MINIMUM |
| LARGE END OUTSIDE DIAMETER | 1.125 INCHES MAXIMUM |
| SMALL END OUTSIDE DIAMETER | 1.025 INCHES MAXIMUM |
| LARGE END HEAD THICKNESS | 0.547 INCHES MAXIMUM |
| SMALL END HEAD THICKNESS | 0.516 INCHES MAXIMUM |
| SPECIAL MARKINGS | WRENCH SIZE |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
