NSN 5120-00-277-3661
Part Details | CROWFOOT SOCKET WRENCH HEAD
5120-00-277-3661 A component with a square internal drive eccentric to an open-wall opening designed to receive any of a series of wrenching sockets, adapters, or attachments. See also CROWFOOT ATTACHMENT, SOCKET WRENCH and SOCKET, CROWFOOT WRENCH HEAD.
Alternate Parts: AA3041, A-A-3041, GGGW646, GGG-W-646, 8708915, 5120-00-277-3661, 00-277-3661, 5120002773661, 002773661
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-3661 | 17104 ( HEAD, CROWFOOT SOCKET WRENCH ) |

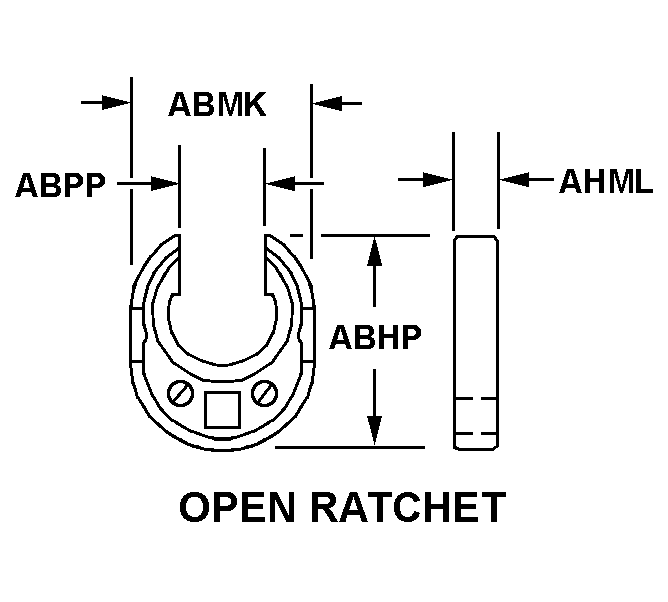

REFERENCE DRAWINGS & PICTURES
OPEN RATCHET
Cross Reference | NSN 5120-00-277-3661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-3041 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-646 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 8708915 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-277-3661
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN RATCHET |
| OVERALL LENGTH | 2.210 INCHES NOMINAL |
| OVERALL WIDTH | 1.650 INCHES NOMINAL |
| OPENING WIDTH | 0.645 INCHES MINIMUM |
| HEAD THICKNESS | 0.520 INCHES NOMINAL |
| TORQUE CAPACITY | 1200.0 INCH-POUNDS NOMINAL |
