NSN 5120-00-277-4068
Part Details | TAP AND REAMER WRENCH
5120-00-277-4068 A hand tool designed for holding and to impart a rotary movement of force to taps and reamers. It may have a ratchet mechanism.
Alternate Parts: GGGW680, GGG-W-680, GGGW680 TY2SZ11, GGG-W-680 TY2SZ11, 5120-00-277-4068, 00-277-4068, 5120002774068, 002774068
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-4068 | 17164 ( WRENCH, TAP AND REAMER ) |
REFERENCE DRAWINGS & PICTURES

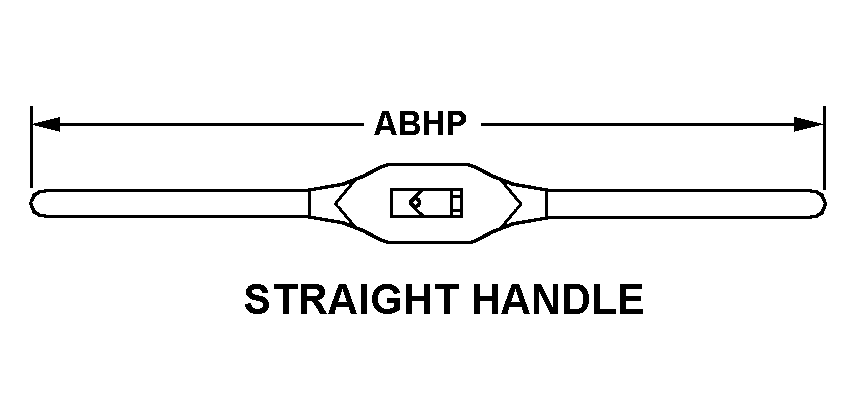

STRAIGHT HANDLE
Cross Reference | NSN 5120-00-277-4068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-680 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-680 TY2SZ11 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-277-4068
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT HANDLE |
| OVERALL LENGTH | 56.000 INCHES MINIMUM AND 74.000 INCHES MAXIMUM |
| TAP SIZE RANGE ACCOMMODATED | +1.750 TO +4.000 INCHES |
| SPECIAL FEATURES | FOR FRACTIONAL SIZE 1-3/4 TO 4 IN. TAPS |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 11 SIZE |
