NSN 5120-00-277-4069
Part Details | TAP AND REAMER WRENCH
5120-00-277-4069 A hand tool designed for holding and to impart a rotary movement of force to taps and reamers. It may have a ratchet mechanism.
Alternate Parts: GGGW680, GGG-W-680, 5120002774069, 5120-00-277-4069, GGGW680 TY1CL1SZ1, GGG-W-680 TY1CL1SZ1, 328, 01350, 328, 01350, 5120-00-277-4069, 00-277-4069, 5120002774069, 002774069
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-4069 | 17164 ( WRENCH, TAP AND REAMER ) |
REFERENCE DRAWINGS & PICTURES

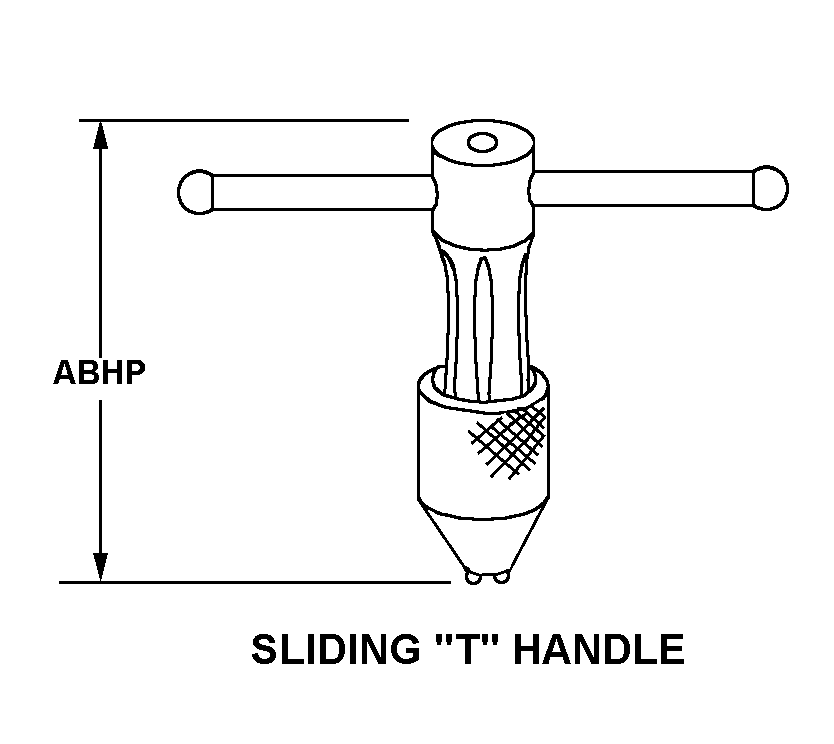

SLIDING "T" HANDLE
Cross Reference | NSN 5120-00-277-4069
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-680 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-277-4069 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-W-680 TY1CL1SZ1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 328 | 65400 | GREENFIELD INDUSTRIES INC |
| 01350 | 65400 | GREENFIELD INDUSTRIES INC |
| 328 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 01350 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
Technical Data | NSN 5120-00-277-4069
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLIDING "T" HANDLE |
| OVERALL LENGTH | 2.500 INCHES MINIMUM |
| TAP SIZE RANGE ACCOMMODATED | +0.060 TO +0.250 INCHES |
| SPECIAL FEATURES | PLAIN; KNURLED ADJUSTING SLEEVE; FOR MACHINE SCREW SIZE 0 TO 1/4 IN. TAPS |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
