NSN 5120-00-277-4071
Part Details | TIRE IRON
5120-00-277-4071 A single bar of various materials having blade like end(s) of various shapes to insert between the rim and the bead of a pneumatic tire to remove and/or replace the tire. Excludes TIRE REMOVING TOOL.
Alternate Parts: GGGT350, GGG-T-350, GGGT350 TY3SZ2, GGG-T-350 TY3SZ2, 182A, T20, 5120-00-277-4071, 00-277-4071, 5120002774071, 002774071
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-4071 | 17788 ( TIRE IRON ) |
REFERENCE DRAWINGS & PICTURES

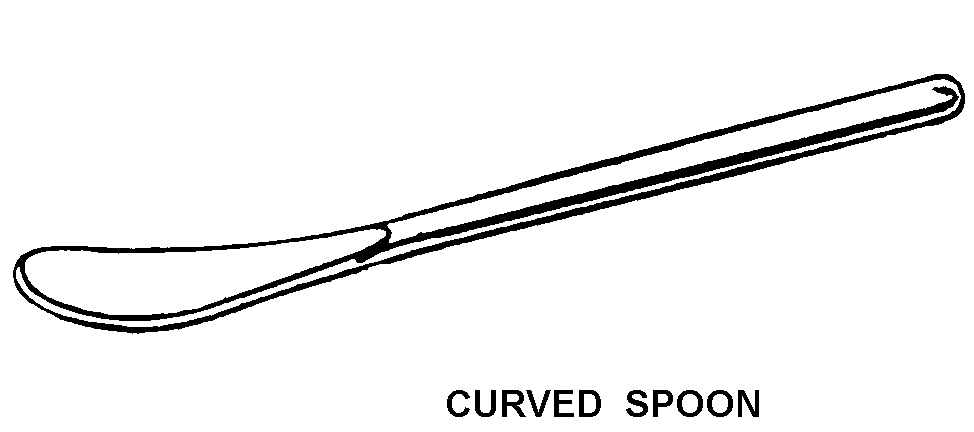

CURVED SPOON
Cross Reference | NSN 5120-00-277-4071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-T-350 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-T-350 TY3SZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 182A | 75204 | SUMMIT TOOL COMPANYDBA KEN-TOOLS |
| T20 | 75204 | SUMMIT TOOL COMPANYDBA KEN-TOOLS |
Technical Data | NSN 5120-00-277-4071
| Characteristic | Specifications |
|---|---|
| ITEM TYPE CATEGORY | ACCESSORY |
| STYLE DESIGNATOR | CURVED SPOON |
| OVERALL LENGTH | 24.000 INCHES NOMINAL |
| ACCESSORY TYPE | TOOL AND EQUIPMENT |
