NSN 5120-00-277-4248
Part Details | LINEMAN'S WRENCH
5120-00-277-4248 An item having an opening at each end. Each end opening has two sizes. In addition, the larger end is provided with a hole for turning in standard pole steps.
Alternate Parts: GGGW648, GGG-W-648, GGGW648 SZ58, GGG-W-648 SZ5/8, KLE 3146, 3146, SCA4417, SC-A-4417, 5120-00-277-4248, 00-277-4248, 5120002774248, 002774248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-277-4248 | 17222 ( WRENCH, LINEMAN'S ) |
REFERENCE DRAWINGS & PICTURES

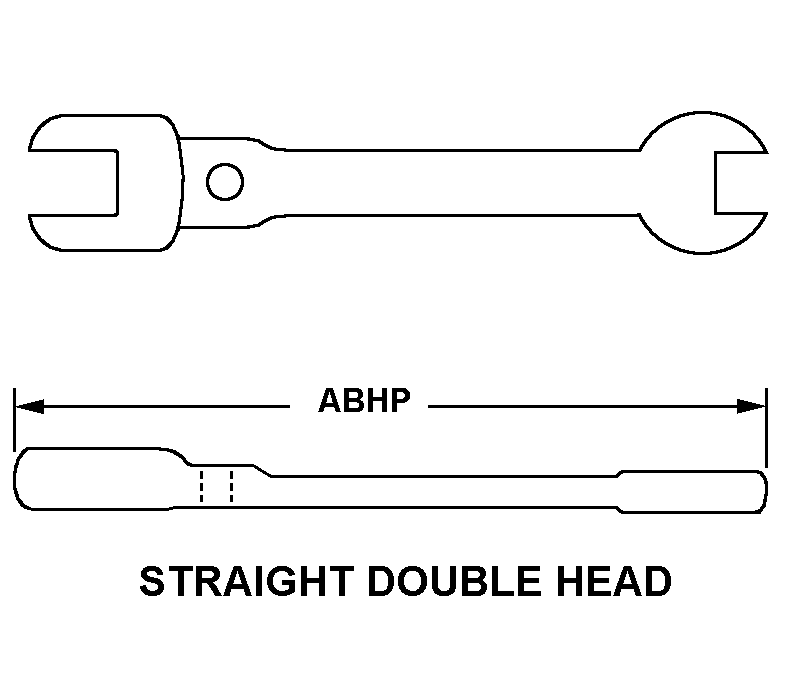

STRAIGHT DOUBLE HEAD
Cross Reference | NSN 5120-00-277-4248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-648 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-648 SZ5/8 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| KLE 3146 | 00NS2 | KIPPER TOOL COMPANY |
| 3146 | 75347 | KLEIN TOOLS INC |
| SC-A-4417 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5120-00-277-4248
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT DOUBLE HEAD |
| OVERALL LENGTH | 12.750 INCHES MINIMUM AND 13.250 INCHES MAXIMUM |
