NSN 5120-00-285-2317
Part Details | SOCKET WRENCH SCREWDRIVER ATTACHMENT
5120-00-285-2317 An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER.
Alternate Parts: HTS9, HTS-9, HTS9, HTS9, HTS-9, 5120-00-285-2317, 00-285-2317, 5120002852317, 002852317
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | SEP 05, 1973 | 00-285-2317 | 52399 ( SCREWDRIVER ATTACHMENT, SOCKET WRENCH ) |

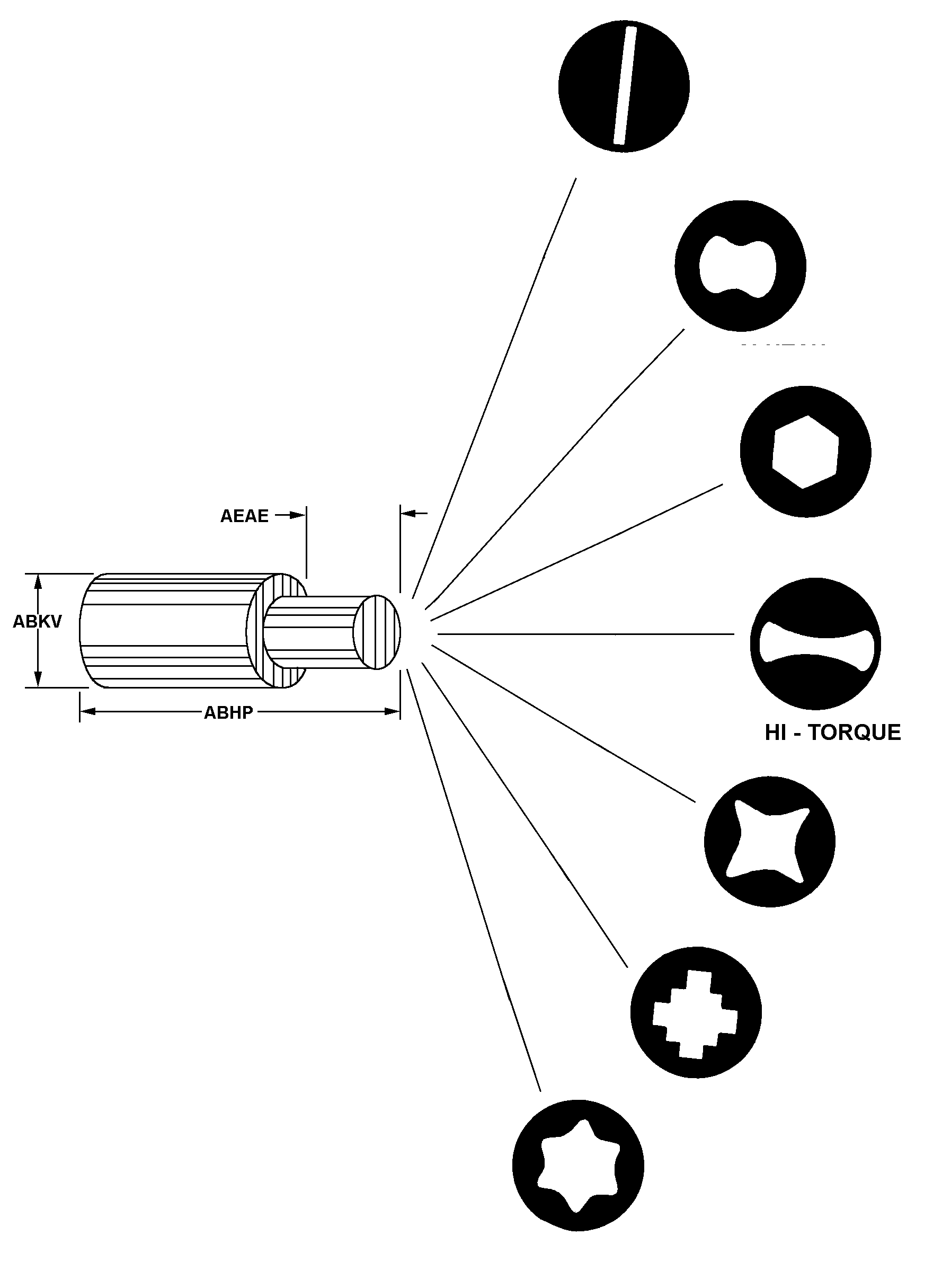

REFERENCE DRAWINGS & PICTURES
HI-TORQUE
Cross Reference | NSN 5120-00-285-2317
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HTS-9 | 03705 | APEX TOOL GROUP, LLC |
| HTS9 | 73197 | HI-SHEAR CORPORATION |
| HTS-9 | F6033 | TECNOTEC SARL |
Technical Data | NSN 5120-00-285-2317
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HI-TORQUE |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| TIP SIZE DESIGNATION | 9 |
