NSN 5120-00-287-2512
Part Details | PLIER CLAMP
5120-00-287-2512 An item having a plier-like handle and an adjustable toggle pressure lock mechanism having smooth jaws, which may be flat or upset. For serrated jaw items, see WRENCH, PLIER.
Alternate Parts: GGGW00649, GGG-W-00649, 5120002872512, 5120-00-287-2512, GGGW00649 TY2CL4, GGG-W-00649 TY2CL4, 10124789, 5120-00-287-2512, 00-287-2512, 5120002872512, 002872512
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-287-2512 | 17612 ( CLAMP, PLIER ) |
REFERENCE DRAWINGS & PICTURES

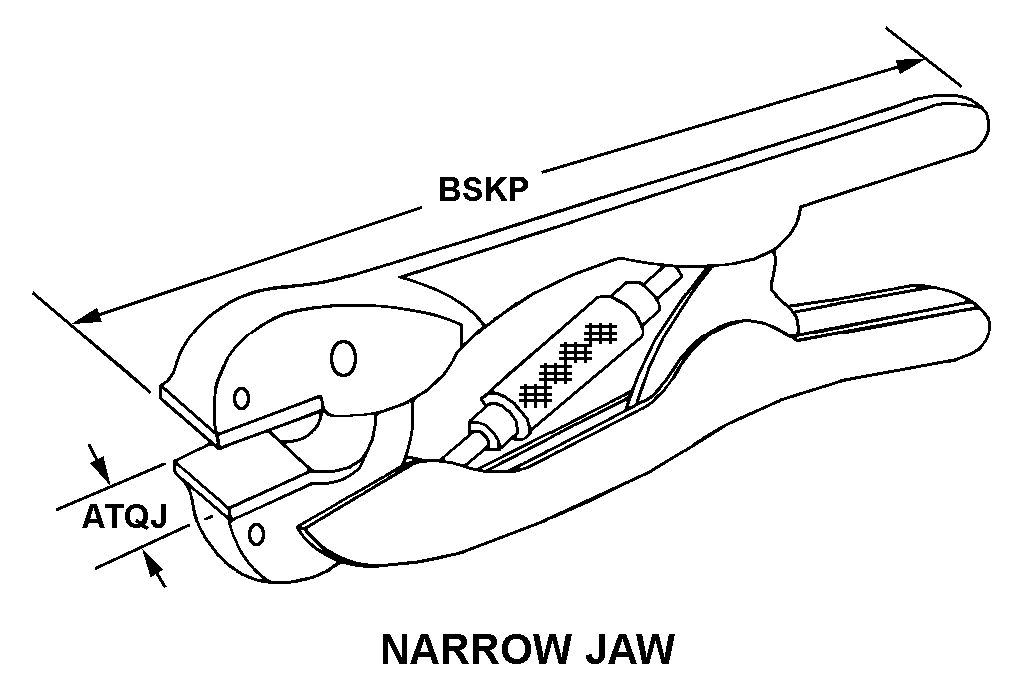

NARROW JAW
Cross Reference | NSN 5120-00-287-2512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-W-00649 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-287-2512 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-W-00649 TY2CL4 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 10124789 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
Technical Data | NSN 5120-00-287-2512
| Characteristic | Specifications |
|---|---|
| PLIERS CLAMP STYLE DESIGNATOR | NARROW JAW |
| SPECIAL FEATURES | SMOOTH JAWS; OXIDE, PHOSPHATE, OR ELECTRO-DEPOSITED METALLIC COATING |
| ENVIRONMENTAL ATTRIBUTE CODE | PLASTICS REMOVAL IN THE MARINE ENVIRONMENT (PRIME) PRODUCT |
| JAW WIDTH | 0.375 INCHES NOMINAL |
| CLOSED OVERALL LENGTH | 7.000 INCHES NOMINAL |
