NSN 5120-00-288-6563
Part Details | HAMMER HANDLE
5120-00-288-6563
Alternate Parts: 666156207, 666156-207, NNH93, NN-H-93, PD5120002886563, PD5120-00-288-6563, NNH93 TY3CL4GRB, NN-H-93 TY3CL4GRB, SCC539549, SC-C-539549, AW30, 5120-00-288-6563, 00-288-6563, 5120002886563, 002886563
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-6563 | 32214 ( HANDLE, HAMMER ) |
REFERENCE DRAWINGS & PICTURES

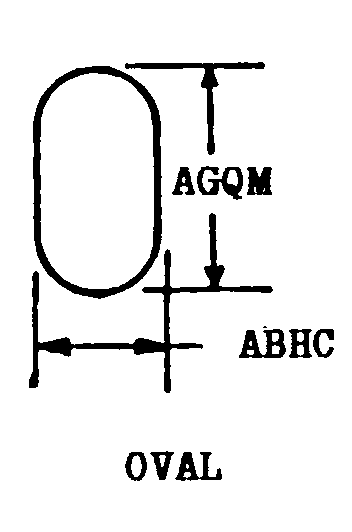

OVAL
Cross Reference | NSN 5120-00-288-6563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 666156-207 | 12436 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| NN-H-93 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| PD5120-00-288-6563 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| NN-H-93 TY3CL4GRB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| SC-C-539549 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| AW30 | 79796 | WOODINGS VERONA TOOL WORKS INC |
Technical Data | NSN 5120-00-288-6563
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 32.000 INCHES MINIMUM AND 36.000 INCHES MAXIMUM |
| MOUNTING METHOD | PRESS FIT |
| EYE END STYLE | OVAL |
| OVERALL WIDTH | 0.938 INCHES NOMINAL |
| END OVERALL LENGTH | 1.312 INCHES NOMINAL |
| SPECIAL FEATURES | HICKORY;SLEDGE TYPE;IN ACCORDANCE WITH GSA PURCHASE DESCRIPTION 5120-00-288-6563 |
