NSN 5120-00-288-8779
Part Details | INTERNAL GRIPPING PIPE WRENCH
5120-00-288-8779 A hand tool designed to be inserted into the end of nipples and pipes, and grip the inner surface by a cam or expansion action. It is used to turn items which may not protrude sufficiently to grip externally, or where an exterior plating or thread may not be marred. The tool is turned by applying a wrench to the protruding section.
Alternate Parts: RID 31405, 342, 31405, 5120-00-288-8779, 00-288-8779, 5120002888779, 002888779
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-288-8779 | 19718 ( WRENCH, PIPE, INTERNAL GRIPPING ) |
REFERENCE DRAWINGS & PICTURES

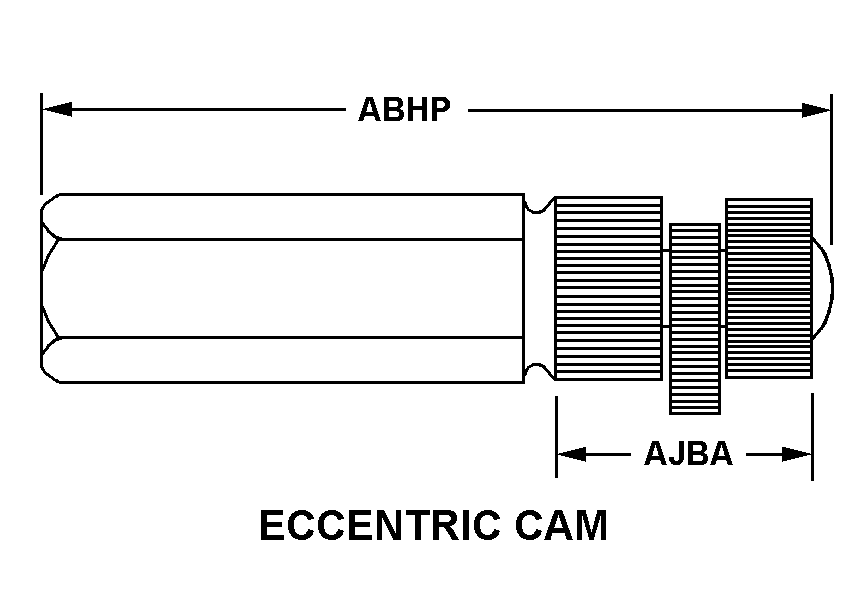

ECCENTRIC CAM
Cross Reference | NSN 5120-00-288-8779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RID 31405 | 00NS2 | KIPPER TOOL COMPANY |
| 342 | 50893 | RIDGE TOOL COMPANY |
| 31405 | 50893 | RIDGE TOOL COMPANY |
Technical Data | NSN 5120-00-288-8779
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ECCENTRIC CAM |
| OVERALL LENGTH | 4.000 INCHES MINIMUM |
| SERRATED SECTION LENGTH | 1.375 INCHES MINIMUM |
| SPECIAL FEATURES | SLIDING PIN HANDLE |
| FUNCTIONAL DESCRIPTION | USED TO HOLD CLOSET SPUDS AND BATH, BASIN AND SINK STRAINERS THRU 2 IN.; ALSO USED TO INSTALL/REMOVE 1 THRU 2 IN. NIPPLES |
